Overview
| Place of Origin: | Jiangsu China |
| Brand Name: | SINA EKATO |
| Model Number: | TVF |
| Certification: | ISO9001, CE |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 30-45 working days |
| Payment Terms: | T/T, L/C |
Quick Detail
Alternative Names
Automatic Piston Filler, Viscous Liquid Filling Machine, Rotary Cream Filler and Capper.
Primary Applications
Widely used for filling high-viscosity products like face creams, lotions, ointments, mascaras, and gels in cosmetic and pharmaceutical industries.
Description

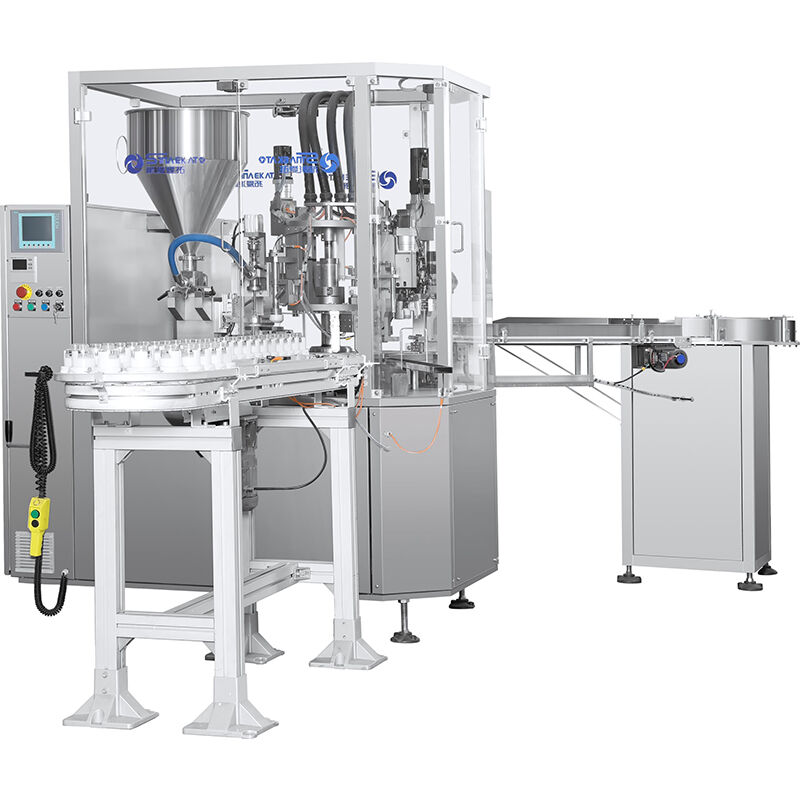

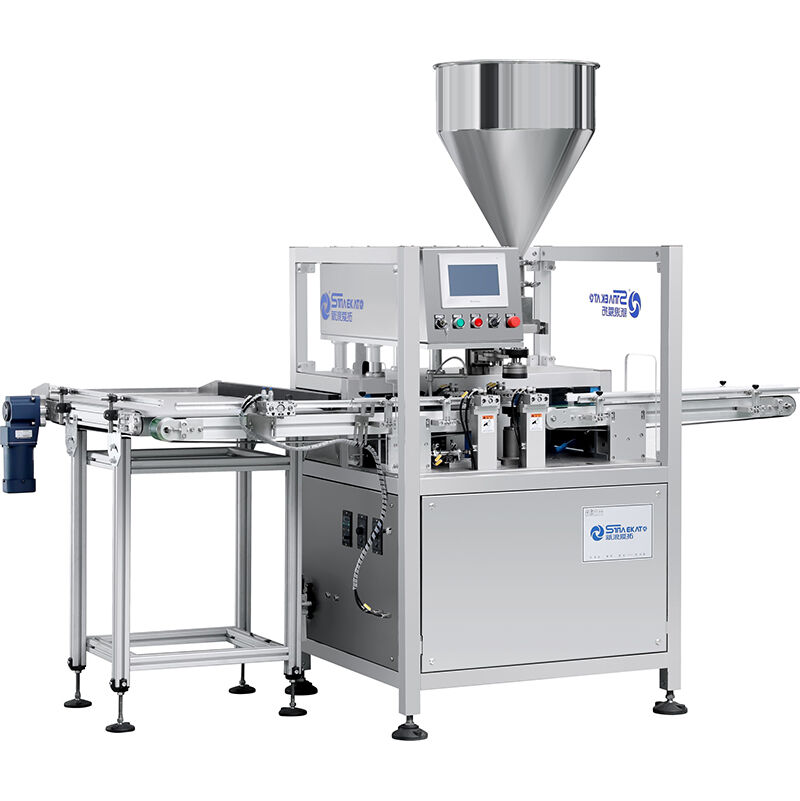

The SinaEkato Automatic Paste Filling Machine is an advanced, fully integrated solution designed for high-precision packaging of viscous materials. This unit streamlines the entire process—from bottle feeding and high-accuracy piston filling to automatic capping and finished product discharging.
Constructed with premium SUS316L stainless steel, it adheres to the strictest GMP hygiene standards. The machine features an intelligent "No Bottle, No Fill" protection system and a high-end Siemens PLC interface, allowing for easy adjustment of filling volumes and speeds. Whether you are producing small batches of luxury eye creams or mass-producing daily lotions, this machine provides the stability, precision, and efficiency required for modern manufacturing.
Applications
· Cosmetics: Creams, lotions, gels, sunscreens, mascaras, and cleansers.
· Pharmaceuticals: Ointments, antiseptic gels, and medical pastes.
· Food & Chemical: Thick sauces, adhesives, lubricants, and concentrated chemical pastes.
Specifications
| Technical Parameter | Data |
| Production Capacity | 2,000 – 3,600 pcs / hour |
| Filling Range | 3g – 200g (Customizable) |
| Filling Precision | ≤ ±1% |
| Hopper Volume | 30L (Optional: Heating & Stirring) |
| Material Quality | Contact parts SUS316L, Frame SUS304 |
| Control System | PLC + HMI Touch Screen (Siemens/Schneider) |
| Power Supply | 220V / 50Hz / 1.1KW |
| Air Pressure | 0.4 – 0.6 Mpa |
| Dimensions | Approx. 1800 x 750 x 1770 mm |
| Net Weight | Approx. 620 KG |
Competitive Advantage
· High Accuracy: The volumetric piston filling system ensures consistent dosing with minimal product waste.
· Labor Saving: Full automation from feeding to capping significantly reduces the need for manual intervention.
· GMP Compliance: Designed with easy-to-clean modular components and high-grade stainless steel for pharmaceutical-level hygiene.
· Versatility: Highly adjustable to accommodate various bottle shapes and sizes with minimal downtime for changeovers.
