Overview
| Place of Origin: | Jiangsu China |
| Brand Name: | SINA EKATO |
| Model Number: | TBJ |
| Certification: | ISO9001, CE |
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 25-35 working days |
| Payment Terms: | T/T, L/C, |
Quick Detail
· Alternative Names: Automatic Sticker Labeling Machine, Self-adhesive Labeler, Round Bottle Labeling Machine.
· Main Applications: Suitable for double-sided labeling on flat/square bottles and wrap-around labeling on round bottles.
· Core Specifications: Labeling speed up to 36m/min, Servo motor driven, Microcomputer PLC control.
Description

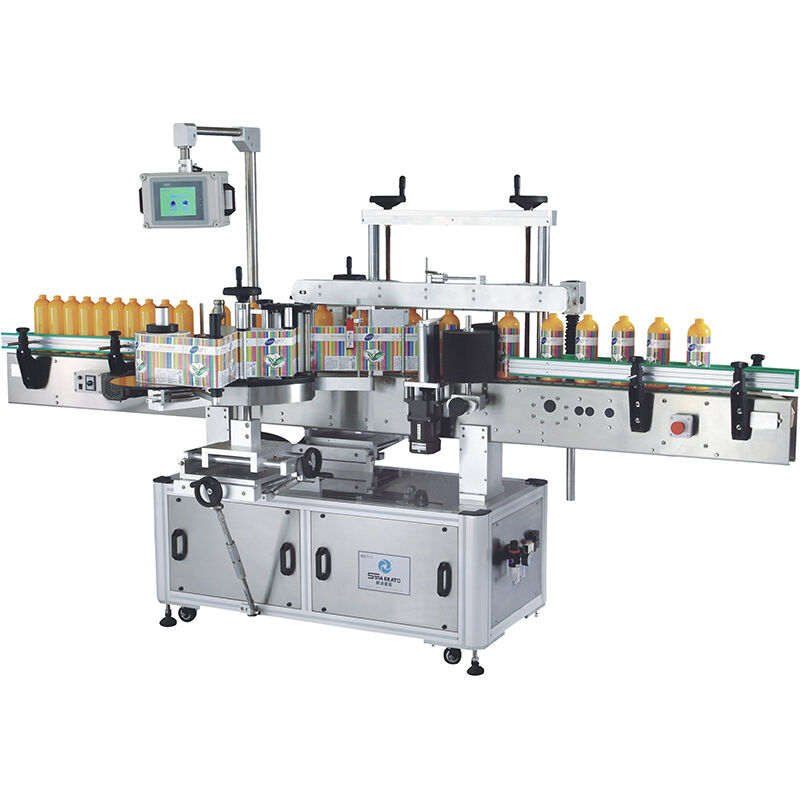

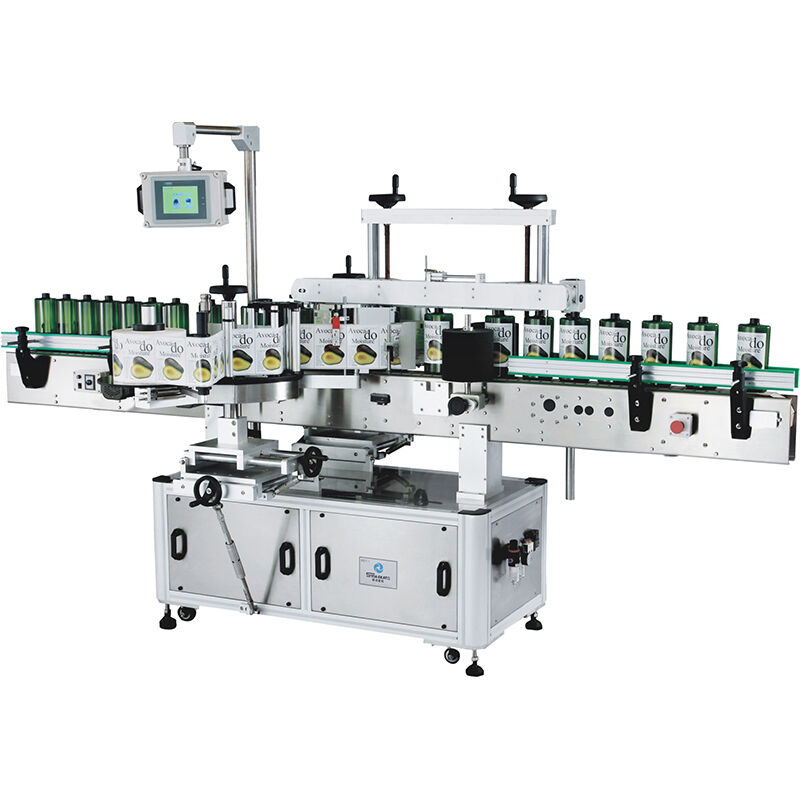

The SinaEkato TBJ Series Automatic Labeling Machine is a high-speed, versatile system designed for the precise application of self-adhesive labels on various container shapes. It is widely used in cosmetics, personal care, and pharmaceutical industries for flat, square, and round bottles.
Constructed from high-grade stainless steel and anodized aluminum alloy, the machine fully complies with GMP standards and is built for rust-free, long-term durability. Featuring a super-large touch screen and a high-performance servo motor, the system ensures that labeling precision is maintained even as production speeds increase. With a memory capacity for over 100 sets of parameters, it allows for exceptionally fast product changeovers, making it ideal for diverse production environments.
Applications
· Cosmetics: Shampoo bottles, lotion pumps, cream jars, and perfume bottles.
· Daily Chemicals: Dishwashing liquid, detergent bottles, .
· Pharmaceuticals: Medicine bottles, syrups, and antiseptic spray containers.
· Food: Sauce bottles, jars, and cylindrical containers.
Specifications
| Technical Parameter | Data |
| Labeling Speed | 36 m / min (Adjustable) |
| Suitable Bottle Types | Flat Bottle, Square Bottle, Round Bottle |
| Label Roll Inner Diameter | 76 mm |
| Max Label Roll Outer Diameter | 370 mm |
| Standard Label Height | 10 – 190 mm |
| Power Supply | 380V, 50/60Hz, 800W |
| Air Supply Requirement | 5 – 8 KG |
| Control System | Imported PLC + Large Touch Screen |
| Driving Motor | Servo Motor |
| Dimensions (L×W×H) | 3000 x 1500 x 1750 mm |
Competitive Advantage
· High Stability: Uses a servo motor for precise labeling, ensuring consistent performance and higher accuracy at high speeds.
· Intelligent Control: Features an imported microcomputer control system with a user-friendly touch interface and 100+ memory slots for quick sample change.
· Durable & GMP Compliant: Made of premium stainless steel and anodized aluminum, ensuring the machine never rusts and meets strict hygienic requirements.
· Versatility: One machine can handle multiple bottle shapes (round, flat, square), with optional German Leuze (GK14) sensors for transparent labels.
