Automatic Tube Filling and Sealing Machine (60 Tubes/min) for Cosmetic & Pharma - Plastic/Laminated/Aluminum Tubes

Overview

Field	Content
Place of Origin	China (Mainland)
Brand Name	(Your Brand / OEM)
Model Number	NF-60A / TFS-60 Series
Certification	CE, ISO9001, GMP Compliant

Quick Detail

Different Names:

Soft Tube Sealing Machine

Ointment/Cream Filling Machine

Ultrasonic Tube Sealer (Optional)

Automatic Tube Packer

Main Usage:

Packaging of viscous pastes, creams, gels, and lotions into collapsible tubes.

Core Specs:

Speed: 60 BPM

Material: SS316L Contact Parts

Control: PLC + Touch Screen

Feature: No Tube No Fill

Description

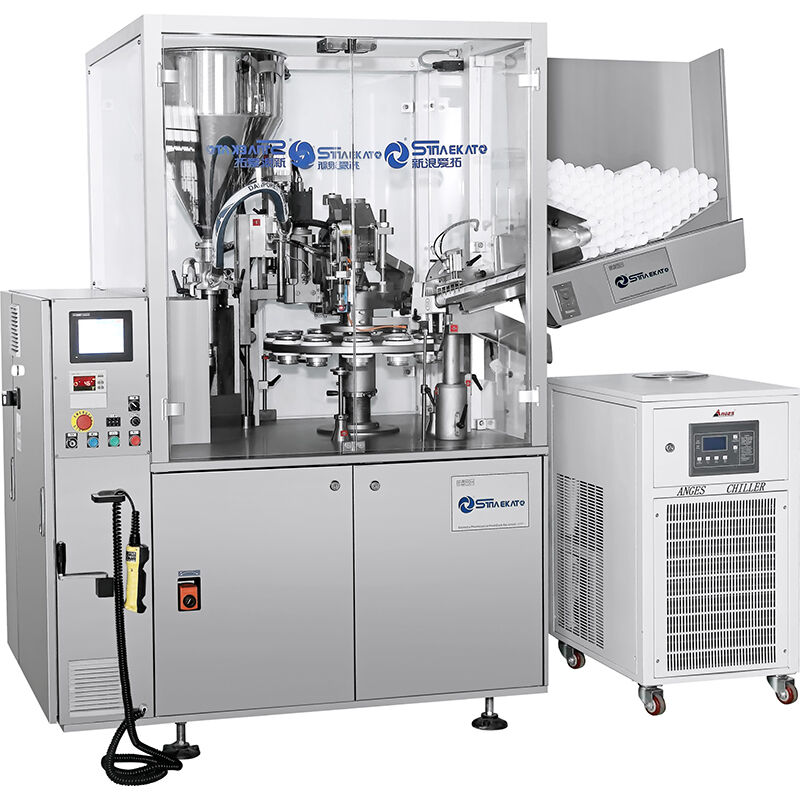

The 60 BPM Automatic Tube Filling and Sealing Machine is a high-performance

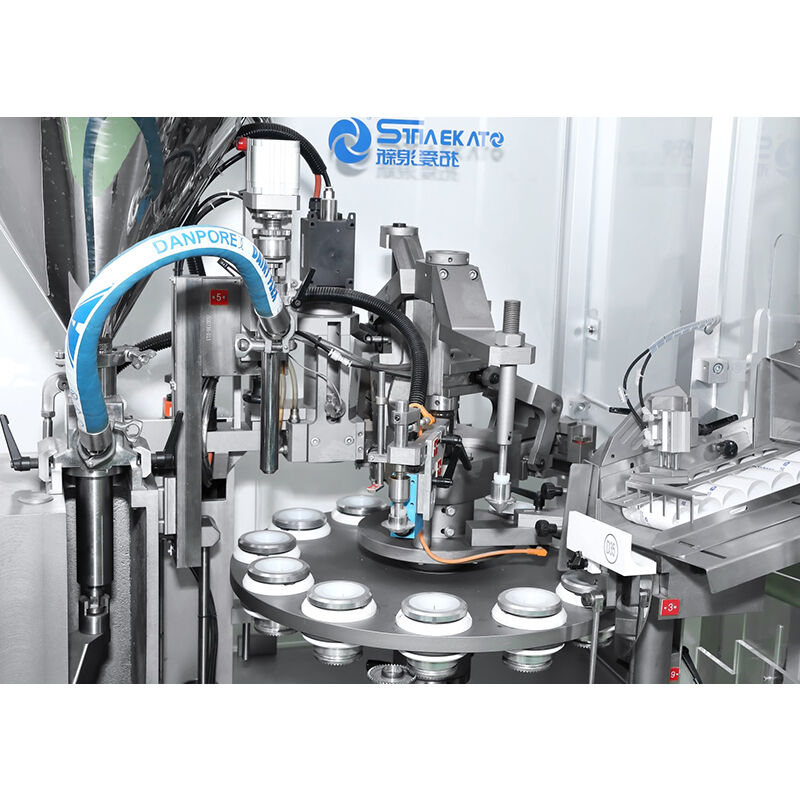

packaging solution specifically engineered for medium-to-large scale production in the cosmetic, pharmaceutical, food, and chemical industries. Utilizing a precision 12-station rotary indexing table, this machine automates the entire packaging cycle—from tube loading, orientation (bench-marking), and filling to sealing, coding, and trimming—at a stable speed of up to 60 tubes per minute.

Designed for versatility, it features interchangeable tooling to handle Plastic (PE), Laminated (ABL/PBL), and Aluminum (Metal) tubes on the same chassis. The plastic tubes utilize advanced Hot Air Sealing technology for a smooth, aesthetic finish, while metal tubes are sealed using a robust Mechanical Folding station (saddle or double fold).

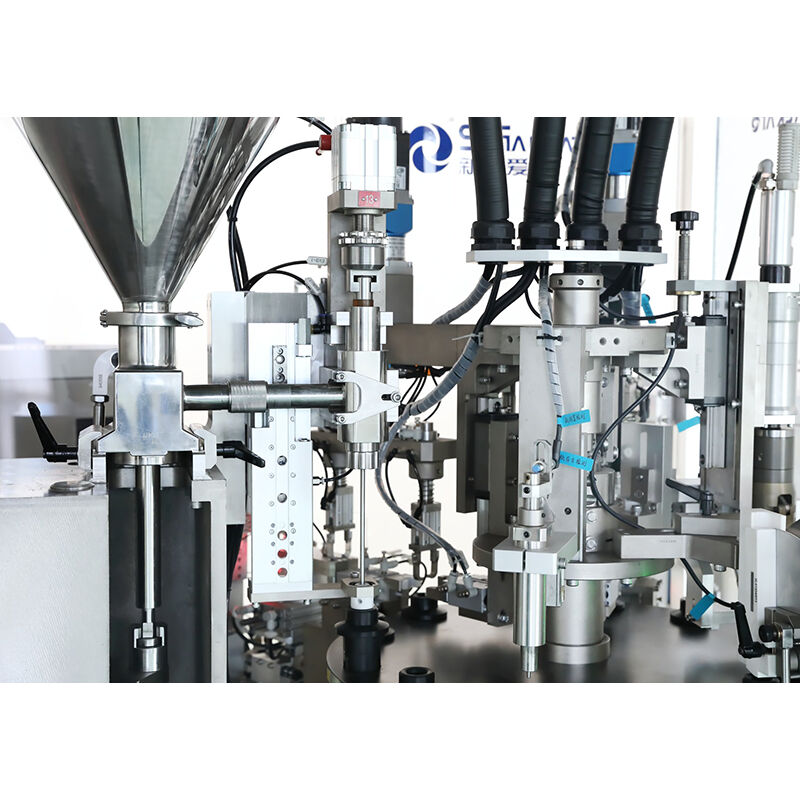

The machine ensures high filling accuracy (≤ ±1%) through a servo-driven or mechanical piston system with bottom-up filling to eliminate air pockets in high-viscosity products.

Constructed with a fully enclosed SS304 stainless steel frame and SS316L contact parts, it meets strict GMP hygiene standards, making it ideal for cleanroom environments.

Applications

Cosmetics: Hand cream, face wash, lotion, sunscreen, hair dye, foundation.

Pharmaceuticals: Ointments, antibiotic creams, gels, eye ointment.

Food: Condensed milk, chocolate sauce, mustard, tomato paste, mayonnaise.

Chemicals: Toothpaste, shoe polish, adhesives, sealants, grease.

Specifications

Competitive Advantage

Advantages of the ST-60 Tube Filling Machine:

Complies with EU standards and supports "CE" certification.

First of all, European machines prioritize user-friendliness and worker safety—and we adhere to the same principle.To this end, the motor unit is equipped with an Italian torque clutch, which effectively prevents machine crashes and abnormal operations that could harm workers. If the Italian torque clutch detects a worker's hand in an unsafe position inside the machine, it can sense the issue and trigger system control.

Additionally, we use a Japanese safety operation handle (instead of a simple button) to effectively reduce personnel operating risks.Our purely mechanical design simplifies maintenance and repairs, and the machine is fitted with an omni-directional safety door for enhanced protection.

Secondly, it meets GMP requirements and ensures no product contamination.The filling nozzles are made from French materials, and our unique cutting design prevents leaks and contamination.

Thirdly, it offers high efficiency, high precision, and stability!For color calibration, we combine an Italian driver with a Japanese Sanyo stepper motor to ensure calibration accuracy.It can achieve a speed of 60 pieces per minute, and the qualified sealing rate exceeds 99%.

Finally,All mechanical components in our offer—even pneumatic parts—use Feston products (whereas others use domestic Airtac brand parts). We only use high-quality components (to align with European machine standards).
