100-500L bright surface frozen mixing explosion-proof perfume machine

Overview

Place of Origin:	Jiangsu China
Brand Name:	SINA EKATO
Model Number:	XS
Certification:	ISO9001, CE
Minimum Order Quantity:	1 SET
Packaging Details:	Standard export wooden case
Delivery Time:	30-45 working days
Payment Terms:	T/T, L/C

Quick Detail

The product is made of high quality 304 stainless steel or 316L stainless steel. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration. The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection from, with convenient assembly, disassembly and cleaning. Equipped with polypropylene microporous filtration film, it can be widely used in cosmetics industry, scientific research department, hospital and laboratory, etc. for clarification, bacteria removal and filtration of small amount of liquid, or micro chemical analysis, which is convenient and reliable.

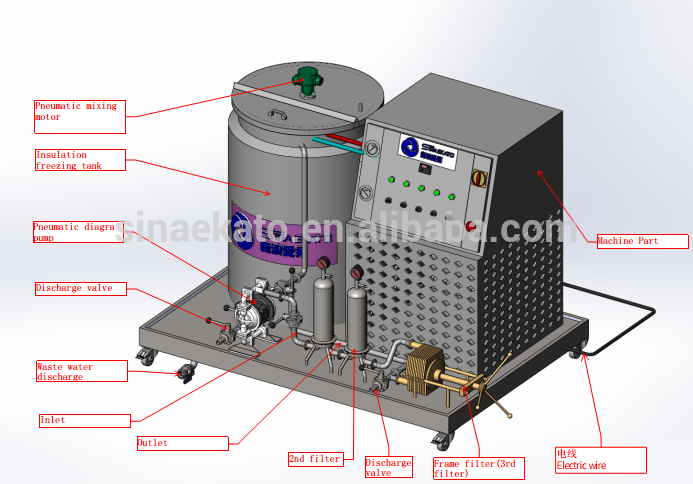

(It includes: Mixing tank for raw material + Chiller system for cooling perfume+ Pump for circulation & discharge + 3 times filter process)

Description

Core Overview

Core Working Principle

1. Mixing System: Driven by a low-noise high-efficiency motor, the customized stirring impeller (anchor type/paddle type) realizes 360° non-dead-angle mixing of raw materials in the closed mixing tank; the adjustable stirring speed adapts to the mixing requirements of different viscosity perfume formulas, ensuring full fusion of essence and solvent without stratification.
2. Chilling System: Equipped with an industrial-grade compressor refrigeration unit and a jacketed heat exchange structure of the mixing tank; the refrigerant circulates in the jacket to conduct rapid and uniform cooling of the mixed perfume raw materials, and the precise temperature control system maintains the material temperature at the optimal chilling range (0-15℃ adjustable) to realize the rapid crystallization and clarification of the perfume, and lock the aromatic components to prevent volatilization loss.

Key Structural Features

1. Closed Integrated Tank Body: Food-grade/stainless steel 316L tank body (meets cosmetic GMP production standards), fully closed structure with airtight feeding/discharging ports, effectively preventing contamination of raw materials and volatilization of aromatic substances; the tank body is polished inside and out, easy to clean and meet hygienic requirements.
2. Precise Temperature & Speed Control: Touch screen PLC intelligent control system, real-time display of material temperature, stirring speed and working time; temperature control accuracy ±0.5℃, stirring speed stepless adjustment (0-300r/min), support automatic timing mixing and chilling, realize unmanned operation.
3. Efficient Refrigeration & Heat Exchange: High-quality scroll/compressor refrigeration unit, low energy consumption and fast cooling speed; jacketed tank body with high heat exchange efficiency, uniform cooling without local overcooling of materials, avoiding perfume quality damage.
4. Humanized Design for Operation: Equipped with a liquid level observation port, pressure gauge, safety relief valve and quick-opening cleaning port; the discharging port adopts a sanitary ball valve with no material residue; the equipment is equipped with a mobile base or fixed installation, easy to integrate into the automatic perfume production line.
5. Stable & Safe Operation: Built-in multiple protection devices (overtemperature alarm, overload protection, low refrigerant alarm, power failure memory); the tank body is designed with pressure resistance and corrosion resistance, adapting to the characteristics of perfume organic solvents, and the service life is long.

Core Technical Advantages

• Formula Protection & Aroma Locking: Closed mixing and low-temperature chilling avoid volatilization of precious essence components, ensure the accuracy of perfume formula ratio and the stability of finished product fragrance.
• High Mixing Uniformity: 360° non-dead-angle stirring, suitable for mixing of various perfume formulas (including high-viscosity formulas), no stratification and precipitation of finished products, high clarity.
• Precise Temperature Control: ±0.5℃ temperature control accuracy, adjustable chilling temperature range, adapt to the chilling process requirements of different types of perfume (eau de toilette, eau de parfum, parfum).
• GMP Compliance: 316L stainless steel tank body, fully closed sanitary structure, in line with cosmetic and daily chemical industry GMP production specifications, easy to pass quality inspection.
• Flexible & Efficient: Stepless speed regulation, timing operation, support batch production; fast cooling and mixing speed, greatly shorten the perfume production cycle and improve production efficiency.
• Easy Maintenance & Operation: Intelligent touch screen operation, simple parameter setting; quick-opening cleaning port and smooth inner tank, easy to clean and maintain, reduce labor costs.

Applications

• Mass production of various perfumes (eau de parfum, eau de toilette, cologne, solid perfume).
• Mixing and chilling of fragrance raw materials in the cosmetic industry (scented lotion, scented shower gel, aromatic candle).
• Small-batch formula testing and mass production of customized perfume in the daily chemical industry.
• Production of aromatic essential oil blends and fragrance additives for daily chemical products.

Specifications

Competitive Advantage

· High-Precision Filtration: Equipped with polypropylene microporous filtration films, achieving a filtration precision up to 0.1μm for crystal clear results.

· Imported Components: Features a reliable USA-imported pneumatic diaphragm pump to ensure stable positive pressure filtration.

· Sanitary & Easy Maintenance: Mirror-polished stainless steel and quick-release pipe fittings comply with GMP standards and allow for rapid cleaning.

· Integrated Refrigeration: Combines freezing, mixing, and filtration in one unit, providing a turnkey solution for fragrance stabilization.
