Overview
| Place of Origin: | Jiangsu China |
| Brand Name: | SINA EKATO |
| Model Number: | SME-DE |
| Certification: | ISO9001, CE |
| Minimum Order Quantity: | 1 SET |
| Delivery Time: | 50days |
| Supply Ability: | 1-10L |
Quick Detail
1. Alternative Names ： Lab Scale Emulsifier, Desktop Homogenizer, R&D Vacuum Mixer, Small Batch Vacuum Mixer
2. Main Applications
Formula R&D: Cosmetic, pharmaceutical, and food formulation research and testing
Small Batch: Small-scale production of premium serums, eye creams, and ointments
Pilot Test: Process parameter simulation and data collection prior to large-scale production
Core Specifications and Parameters
| Parameter Category | Core Parameter Items | Common Specification Range |
| Emulsifying Pot Parameters | Effective Volume | 1L - 10L (lab-scale pilot/testing/mass production models) |
| Material | Inner Pot: 316L Stainless Steel (food/pharmaceutical grade); Outer Pot: 304 Stainless Steel | |
| Jacket Design | Equipped with heating/cooling jacket, compatible with steam or thermal oil heating | |
| Homogenizing & Emulsifying System | Homogenizer Rotating Speed | 0 - 3600r/min (variable frequency speed regulation) |
| Stirring Paddle Configuration | Two different directions mixing with scraper + Helicon mixing (Clockwise and counter-clockwise mixing) rotating speed: 0 - 60r/min | |
| Vacuum System | Vacuum Degree | ≤ -0.095MPa (adjustable to meet defoaming requirements) |
| Lifting System | Lifting Method | Hydraulic lifting |
| Heating & Cooling System | Heating Temperature Range | Room Temperature - 120℃ (temperature control accuracy: ±1℃) |
| Cooling Method | Rapid cooling via circulating cooling water in the jacket | |
| Control System | Operation Interface | PLC + touch screen control, with production formula storage function |
| Safety Protection | Vacuum overload protection, over-temperature alarm, motor overload protection |
Description

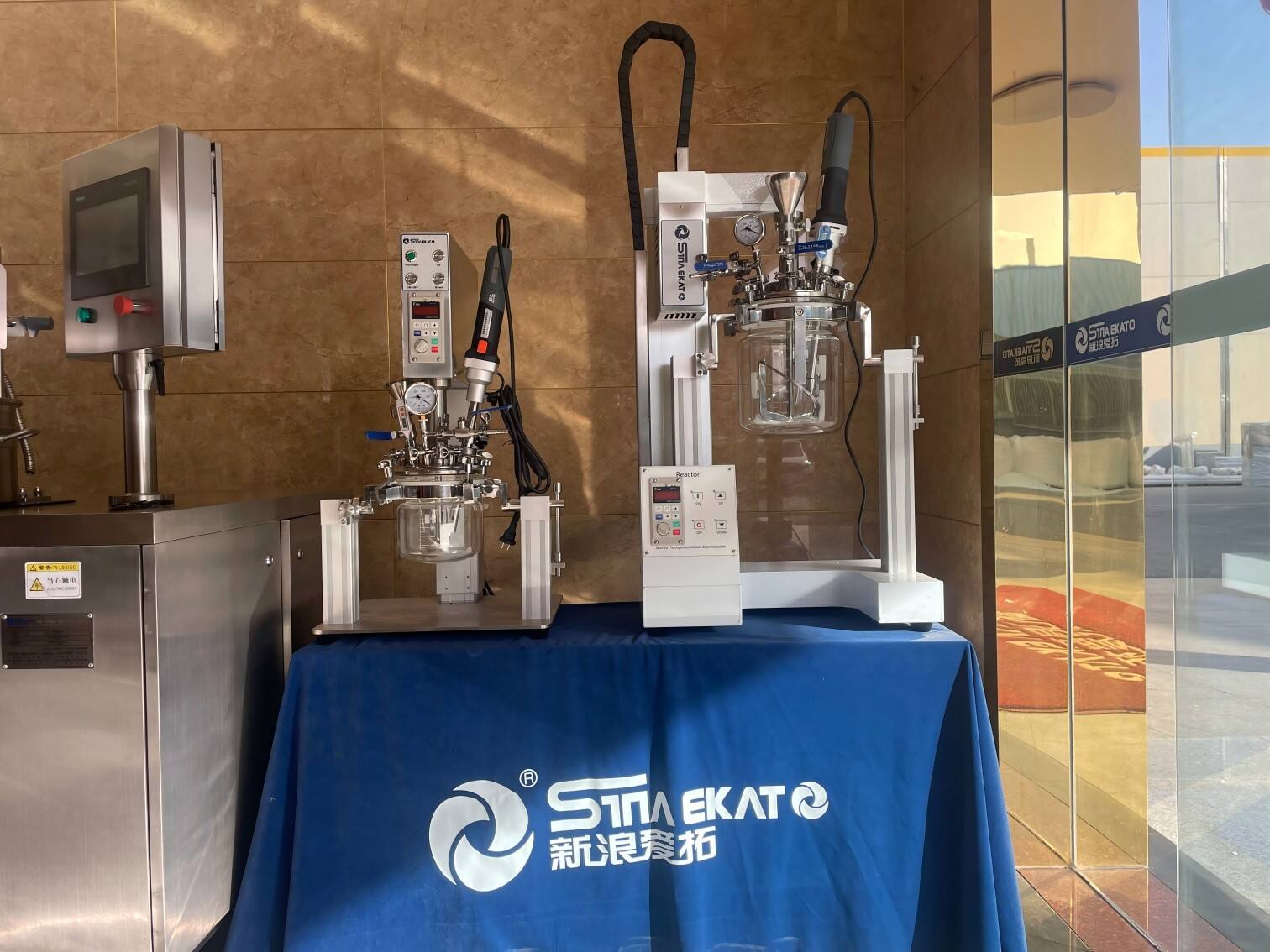

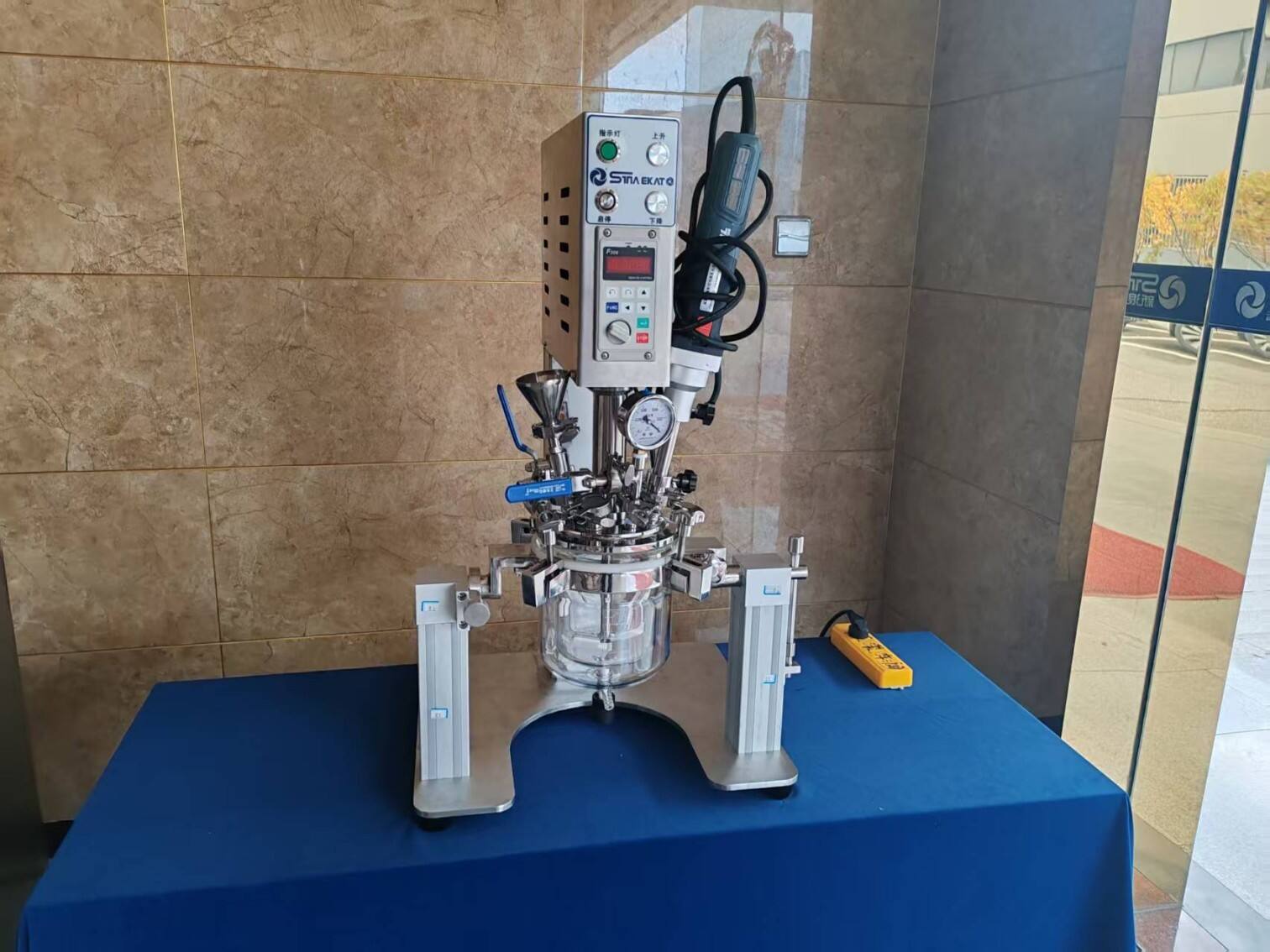

The Reactor-10L is a state-of-the-art laboratory-scale vacuum homogenizing emulsification system developed by SINAEKATO, designed to meet the rigorous demands of R&D in cosmetics, pharmaceuticals, and fine chemicals. This compact, versatile reactor enables precise control over small-batch formulation development, process validation, and quality testing, serving as an essential bridge between lab-scale experimentation and industrial production.
Key Features & Technical Specifications
- Working Volume: 1L-10L, ideal for small-batch R&D and pilot-scale trials.
- Reactor Vessel: Double-layer borosilicate glass construction for excellent visibility, chemical resistance, and easy cleaning. The jacketed design supports precise temperature control (heating/cooling) to match diverse formulation requirements.
- Agitation & Homogenization: Equipped with a high-shear homogenizer and multi-functional stirring system, enabling efficient emulsification, dispersion, and mixing under vacuum conditions to prevent oxidation and foaming.
- Control System: Intuitive digital control panel with PID temperature control, pressure monitoring, and adjustable speed settings for both stirring and homogenization.
- Vacuum System: Built-in vacuum capability to support degassing and ensure stable, high-quality emulsions and suspensions.
- Material Handling: Stainless steel (SUS304/316L) wetted parts for compliance with GMP and hygiene standards in pharmaceutical and cosmetic applications.
Applications
- Cosmetics R&D: Formulation development for creams, lotions, serums, emulsions, and other skincare products.
- Pharmaceuticals: Preparation of topical creams, gels, ointments, and other semi-solid pharmaceutical formulations.
- Fine Chemicals: Small-scale synthesis, dispersion, and emulsification of specialty chemicals and personal care ingredients.
Specifications
| Item | Specification |
| Effective Volume | 1L-10 L |
| Reactor Vessel | Double-layer borosilicate glass (jacketed for heating/cooling media) |
| Wetted Parts Material | SUS316L stainless steel (GMP-compliant) |
| Agitation System | Anchor stirrer + high-shear homogenizer |
| Stirring Speed | 0–200 rpm (adjustable) |
| Homogenizing Speed | 0–28,000 rpm (adjustable) |
| Temperature Control Range | 10°C to 90°C (via jacket circulation) |
| Vacuum Degree | -0.095 MPa (supports vacuum emulsification and degassing) |
| Power Supply | 220V / 50Hz (380V available on request) |
| Lifting Mode | Electric lifting (stroke approx. 300 mm) |
Competitive Advantage
·
- Precision & Reproducibility: Delivers consistent, repeatable results for reliable formulation development.
- Flexibility: Supports a wide range of process conditions (temperature, pressure, shear) to accommodate diverse material properties.
- Compliance: Designed to meet international hygiene and safety standards, making it suitable for regulated industries.
- Scalability: Provides a direct pathway for scaling up successful lab formulations to industrial production lines.
