Overview
| Place of Origin: | Jiangsu China |
| Brand Name: | SINA EKATO |
| Model Number: | SME-DE |
| Certification: | ISO9001, CE |
| Minimum Order Quantity: | 1 SET |
| Delivery Time: | 50days |
| Supply Ability: | 10-50L |
Quick Detail
1. Alternative Names ： Lab Scale Emulsifier, Desktop Homogenizer, R&D Vacuum Mixer, Small Batch Vacuum Mixer
2. Main Applications
Formula R&D: Cosmetic, pharmaceutical, and food formulation research and testing
Small Batch: Small-scale production of premium serums, eye creams, and ointments
Pilot Test: Process parameter simulation and data collection prior to large-scale production
Core Specifications and Parameters
| Parameter Category | Core Parameter Items | Common Specification Range |
| Emulsifying Pot Parameters | Effective Volume | 10L - 50L (lab-scale pilot/testing/mass production models) |
| Material | Inner Pot: 316L Stainless Steel (food/pharmaceutical grade); Outer Pot: 304 Stainless Steel | |
| Jacket Design | Equipped with heating/cooling jacket, compatible with steam or thermal oil heating | |
| Homogenizing & Emulsifying System | Homogenizer Rotating Speed | 0 - 3600r/min (variable frequency speed regulation) |
| Stirring Paddle Configuration | Two different directions mixing with scraper + Helicon mixing (Clockwise and counter-clockwise mixing) rotating speed: 0 - 60r/min | |
| Vacuum System | Vacuum Degree | ≤ -0.095MPa (adjustable to meet defoaming requirements) |
| Lifting System | Lifting Method | Hydraulic lifting |
| Heating & Cooling System | Heating Temperature Range | Room Temperature - 120℃ (temperature control accuracy: ±1℃) |
| Cooling Method | Rapid cooling via circulating cooling water in the jacket | |
| Control System | Operation Interface | PLC + touch screen control, with production formula storage function |
| Safety Protection | Vacuum overload protection, over-temperature alarm, motor overload protection |
Description

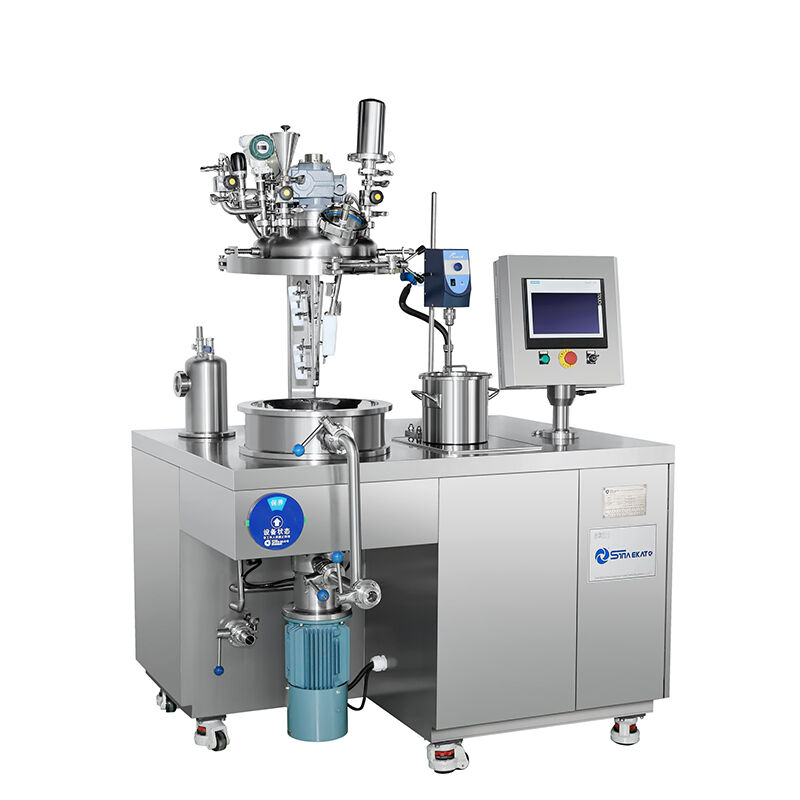

Achieve industrial-quality emulsions in a compact, desktop design. Perfect for formula development and pilot-scale production.
Vacuum System: -0.09Mpa limit vacuum for superior stability and gloss.
High Shear: German-tech homogenizer for silky-smooth textures.
Durable Build: Pharma-grade SUS316L stainless steel construction.
Ease of Use: Electric lifting and intuitive touch-screen control.
Versatile: Ideal for lotions, facial creams, medical ointments, and high-viscosity gels.
Applications
| Daily cosmetic | |||
| hair conditioner | facial mask | moisturizing lotion | suncream |
| skin care | face lotion | body lotion | sunscreen cream |
| cream | hair cream | cosmetic paste | BB Cream |
| lotion | face wash liquid | eye serum | hair gel |
| hair dye | lip balm | serum | lip gloss |
| emulsion | lipstick | Highly viscous product | shampoo |
| cosmetic toner | hand cream | shaving cream | moisturizing cream |
| Pharmaceutical | |||
| Topical Ointment | Topical Cream | Topical Patches | Topical gel |
| Fulibuprofen Gel Patches | Adapalene Gel | Neomycin Ointment | Mupirocin Ointment |
| Food | |||
| cheese | milk butter | wasabi | mayonnaise |
| ketchup | milk butter | margarine | Salad dressing |
| mustard | toothpaste | sauce | chocolate |
Specifications
| Model | Capacity | HomogenizerMotor | Stir Motor | Dimension | Total Power | Limitvacuum(Mpa) | ||||
| kw | r/min | kw | r/min | Length(mm) | Width(mm) | Height(mm) | ||||
| SME-DE100 | 10L | 2.2 | 6000 | 0.55 | 0-93 | 1300 | 1000 | 1400/1900 | 10 | -0.097 |
| SME-DE200 | 20L | 2.2 | 6000 | 0.75 | 0-93 | 1200 | 1200 | 1500/2000 | 10 | -0.097 |
| SME-DE300 | 30L | 4 | 4500 | 1.1 | 0-83 | 1400 | 1400 | 1400/2000 | 17 | -0.097 |
| SME-DE500 | 50L | 4 | 4500 | 1.7 | 0-83 | 1600 | 1100 | 1100/2400 | 10 | -0.097 |
| Note:In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail. | ||||||||||
Competitive Advantage
· Siemens motor and frequency converter for speed adjustment, which can meet production of different technology requirement.
· The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking adopted can avoid dust especially for the powder products.
· Mechanical sealing, good sealing effect and long working life.
· The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
· Material contact parts all use SUS316L stainless steel.
· The heating method mainly include electric or steam heating for customer's choice.
· The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
