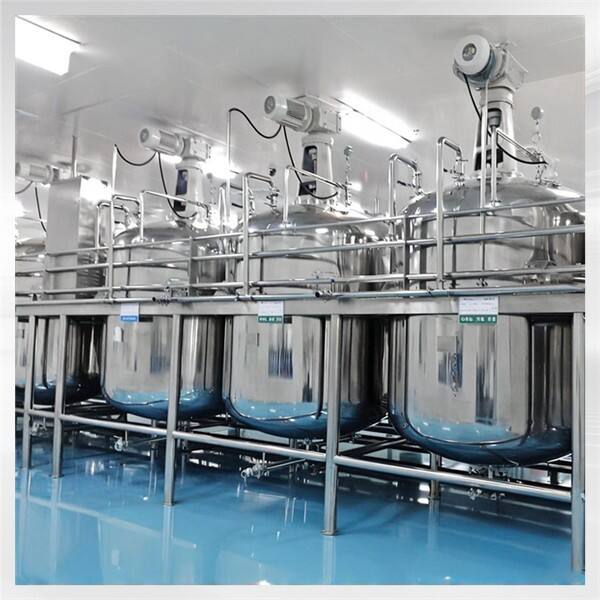

Large-scale Continuous Production Vacuum Emulsifying Mixing Machine
Cosmetic Machine Vacuum Homogenizer Emulsifier
- Overview
- Quick Detail
- Description
- Applications
- Specifications
- Competitive Advantage
- Recommended Products
Overview
| Place of Origin: | Jiangsu China |
| Brand Name: | SINA EKATO |
| Model Number: | SME-B |
| Certification: | ISO9001, CE |
| Minimum Order Quantity: | 1 SET |
| Delivery Time: | 50days |
| Supply Ability: | 500-5000L |
Quick Detail
1. Alternative Names: Fixed Type Emulsifier, Stationary Homogenizer, Industrial Vacuum Mixer, Bottom-Homogenizing Emulsifying Unit
2. Main Applications
Cosmetics: Foundation, Cold Cream, Sunscreen.
Pharmacy: Ointment, Suppository, Dental Paste.
Food: Mayonnaise, Dressing, Sauce.
Core Specifications and Parameters
| Parameter Category | Core Parameter Items | Common Specification Range |
| Emulsifying Pot Parameters | Effective Volume | 500L - 5000L (mass production models) |
| Material | Inner Pot: 316L Stainless Steel (food/pharmaceutical grade); Outer Pot: 304 Stainless Steel | |
| Jacket Design | Equipped with heating/cooling jacket, compatible with steam or thermal oil heating | |
| Homogenizing & Emulsifying System | Bottom Homogenizer Speed | 0 - 3000r/min (variable frequency speed regulation) |
| Stirring Paddle Configuration | Two different directions mixing with scraper + Helicon mixing (Clockwise and counter-clockwise mixing) rotating speed: 0 - 45r/min | |
| Vacuum System | Vacuum Degree | ≤ -0.095MPa (adjustable to meet defoaming requirements) |
| Heating & Cooling System | Heating Temperature Range | Room Temperature - 120℃ (temperature control accuracy: ±1℃) |
| Cooling Method | Rapid cooling via circulating cooling water in the jacket | |
| Control System | Operation Interface | PLC + touch screen control, with production formula storage function |
| Safety Protection | Vacuum overload protection, over-temperature alarm, motor overload protection |
Description
The Fixed Vacuum Emulsifying Mixer is a high-performance homogenization system designed for the stable, large-scale production of high-viscosity emulsions. Unlike lifting models, its fixed-cover design ensures superior airtightness and structural integrity, making it the ideal choice for vacuum deaeration.
-
Key Features:
-
High-Shear Homogenization: Precision rotor-stator system for ultra-fine particle distribution.
-
Vacuum Deaeration: Processes materials in a full vacuum to eliminate bubbles and prevent oxidation.
-
Efficient Mixing: Bi-directional frame agitator with PTFE wall scrapers for 100% coverage.
-
GMP Standard: Full SUS316L stainless steel construction with a mirror-polished finish.
-
-
Applications: Cosmetics (Face Cream/Lotion), Pharmaceuticals (Ointment/Gel), Food (Mayonnaise/Sauce), and Fine Chemicals.
Applications
| Daily cosmetic | |||
| hair conditioner | facial mask | moisturizing lotion | suncream |
| skin care | face lotion | body lotion | sunscreen cream |
| cream | hair cream | cosmetic paste | BB Cream |
| lotion | face wash liquid | eye serum | hair gel |
| hair dye | lip balm | serum | lip gloss |
| emulsion | lipstick | Highly viscous product | shampoo |
| cosmetic toner | hand cream | shaving cream | moisturizing cream |
| Pharmaceutical | |||
| Topical Ointment | Topical Cream | Topical Patches | Topical gel |
| Fulibuprofen Gel Patches | Adapalene Gel | Neomycin Ointment | Mupirocin Ointment |
| Food | |||
| cheese | milk butter | wasabi | mayonnaise |
| ketchup | mustard | margarine | Salad dressing |
Specifications
| Model | Capacity | HomogenizerMotor | Stir Motor | Dimension | Total Power(KW) | Limitvacuum(Mpa) | |||||
| kw | r/min | kw | r/min | Length(mm) | Width(mm) | Height(mm) | Steamheating | Electricheating | |||
| SME-B100 | 100L | 2.8-4 | 1440/2880 | 1.5 | 0-63 | 2750 | 2700 | 2250 | 13 | 32 | -0.09 |
| SME-B200 | 200L | 6.5-8 | 1440/2880 | 2.2 | 0-63 | 3100 | 3000 | 2500 | 15 | 45 | -0.09 |
| SME-B300 | 300L | 6.5-8 | 1440/2880 | 2.2 | 0-63 | 3500 | 3350 | 2650 | 18 | 49 | -0.085 |
| SME-B500 | 500L | 6.5-8 | 1440/2880 | 4 | 0-63 | 3850 | 3600 | 2750 | 22 | 61 | -0.08 |
| SME-B1000 | 1000L | 9-11 | 1440/2880 | 5.5 | 0-63 | 4200 | 3850 | 3300 | 28 | 88 | -0.08 |
| SME-B2000 | 2000L | 11-14 | 1440/2880 | 5.5 | 0-63 | 4500 | 4050 | 3800 | 34 | - | -0.08 |
| SME-B3000 | 3000L | 15-18 | 1440/2880 | 7.5 | 0-63 | 4800 | 4300 | 4100 | 40 | - | -0.08 |
| Note:In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail. | |||||||||||
Competitive Advantage
· Siemens motor and frequency converter for speed adjustment, which can meet production of different technology requirement.
· The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking adopted can avoid dust especially for the powder products.
· Mechanical sealing, good sealing effect and long working life.
· The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
· Material contact parts all use SUS316L stainless steel.
· The heating method mainly include electric or steam heating for customer's choice.
· The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
