Overview
| Place of Origin: | Jiangsu China |
| Brand Name: | SINA EKATO |
| Model Number: | SME |
| Certification: | ISO9001, CE |
Quick Detail
In the industrial sector and different markets, this equipment has multiple expressions based on functions, application scenarios and regional habits. The common English and Chinese names are as follows:
· Lifting Vacuum Homogenizing Emulsifier (for Body Lotion/Cream)
· Cream-type Body Lotion Vacuum Emulsifying Mixer with Lifting Function
· Hydraulic Lifting Vacuum Emulsifier for Cosmetic Cream & Lotion
· Lifting-type Vacuum Emulsification Machine for Personal Care Cream Production
Core Specifications and Parameters:
| Parameter Category | Core Parameter Items | Common Specification Range |
| Emulsifying Pot Parameters | Effective Volume | 50L - 5000L (lab-scale pilot/testing/mass production models) |
| Material | Inner Pot: 316L Stainless Steel (food/pharmaceutical grade); Outer Pot: 304 Stainless Steel | |
| Jacket Design | Equipped with heating/cooling jacket, compatible with steam or thermal oil heating | |
| Homogenizing & Emulsifying System | Homogenizer Rotating Speed | 0 - 3000r/min (variable frequency speed regulation) |
| Stirring Paddle Configuration | Two different directions mixing with scraper + Helicon mixing (Clockwise and counter-clockwise mixing) rotating speed: 0 - 60r/min | |
| Vacuum System | Vacuum Degree | ≤ -0.095MPa (adjustable to meet defoaming requirements) |
| Lifting System | Lifting Method | Hydraulic lifting |
| Heating & Cooling System | Heating Temperature Range | Room Temperature - 120℃ (temperature control accuracy: ±1℃) |
| Cooling Method | Rapid cooling via circulating cooling water in the jacket | |
| Control System | Operation Interface | PLC + touch screen control, with production formula storage function |
| Safety Protection | Vacuum overload protection, over-temperature alarm, motor overload protection |
Specifications
| Model | Capacity | Homogenizer Motor | Stir Motor | Dimension | Total power(KW) | Limit vacuum(Mpa) | |||||
| KW | r/min | KW | r/min | Length(mm) | Width(mm) | Height(mm) | Steam heating | Electric heating | |||
| SME-AE-5 | 5L | 0.37 | 0-3000 | 0.18 | 0-72 | 1260 | 540 | 1600/1850 | 2 | 5 | -0.095 |
| SME-AE-10 | 10L | 0.75 | 0-3000 | 0.37 | 0-72 | 1300 | 580 | 1600/1950 | 3 | 6 | -0.095 |
| SME-AE-50 | 50L | 3-5.5 | 0-3000 | 1.1 | 0-63 | 2600 | 2250 | 1950/2700 | 9 | 18 | -0.095 |
| SME-AE-100 | 100L | 4-7.5 | 0-3000 | 1.5 | 0-63 | 2750 | 2700 | 2250/3100 | 13 | 32 | -0.09 |
| SME-AE-200 | 200L | 5.5-11 | 0-3000 | 2.2 | 0-63 | 3100 | 3000 | 2500/3450 | 15 | 45 | -0.09 |
| SME-AE-300 | 300L | 5.5-11 | 0-3000 | 2.2 | 0-63 | 3500 | 3350 | 2650/3600 | 18 | 49 | -0.085 |
| SME-AE-500 | 500L | 7.5-11 | 0-3000 | 4 | 0-63 | 3850 | 3600 | 2750/4000 | 22 | 61 | -0.08 |
| SME-AE-1000 | 1000L | 15-18.5 | 0-3000 | 5.5 | 0-53 | 4200 | 3850 | 3300/4800 | 28 | 88 | -0.08 |
| SME-AE-2000 | 2000L | 18.5-22.5 | 0-3000 | 7.5 | 0-53 | 4850 | 4300 | 3800/5400 | 40 | - | -0.08 |
Description

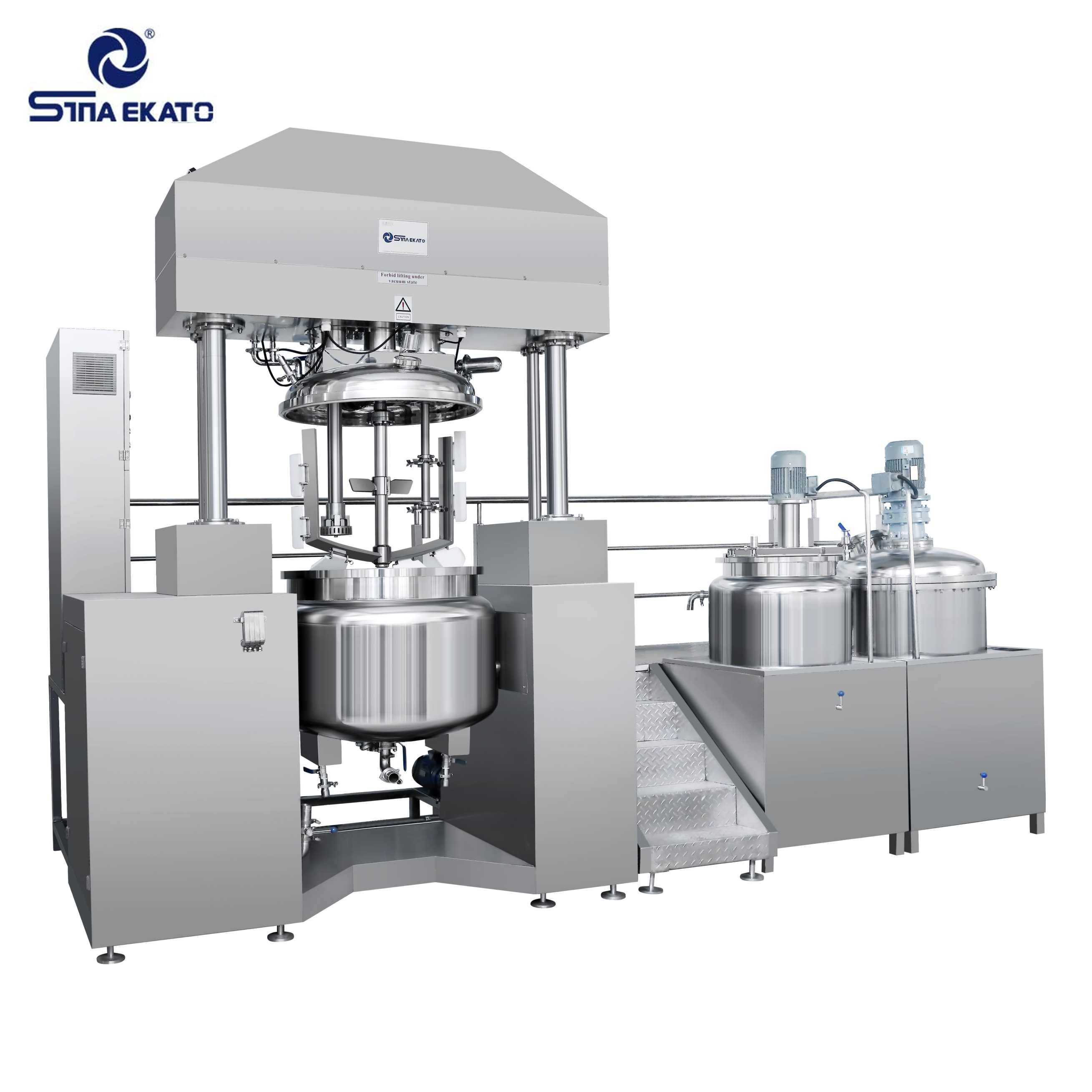

Our Hydraulic Lifting Emulsifier is designed for high-end cosmetic and pharmaceutical production where hygiene and efficiency are paramount. The automated lifting system allows for easy access to the vessel and agitators, making cleaning and maintenance faster than ever.
-
Hydraulic Lifting System: One-touch operation for effortless lid or vessel elevation.
-
Superior Homogenization: High-shear bottom or top-entry homogenizer (up to 3,600 RPM) for silky-smooth textures.
-
Easy Maintenance: The open-frame design facilitates thorough CIP/SIP cleaning, ensuring zero cross-contamination.
-
Real-time Monitoring: Integrated sight glass with LED lighting to monitor the emulsification process in real-time.
Applications
| Daily cosmetic | |||
| hair conditioner | facial mask | moisturizing lotion | suncream |
| skin care | face lotion | body lotion | sunscreen cream |
| cream | hair cream | cosmetic paste | BB Cream |
| lotion | face wash liquid | eye serum | hair gel |
| hair dye | lip balm | serum | lip gloss |
| emulsion | lipstick | Highly viscous product | shampoo |
| cosmetic toner | hand cream | shaving cream | moisturizing cream |
| Pharmaceutical | |||
| Topical Ointment | Topical Cream | Topical Patches | Topical gel |
| Fulibuprofen Gel Patches | Adapalene Gel | Neomycin Ointment | Mupirocin Ointment |
Competitive Advantage
· Siemens motor and frequency converter for speed adjustment, which can meet production of different technology requirement.
· The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking adopted can avoid dustespecially for the powder products.
· Mechanical sealing, good sealing effect and long working life.
· The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
· Material contact parts all use SUS316L stainless steel.
· The heating method mainly include electric or steam heating for customer's choice.
· The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
