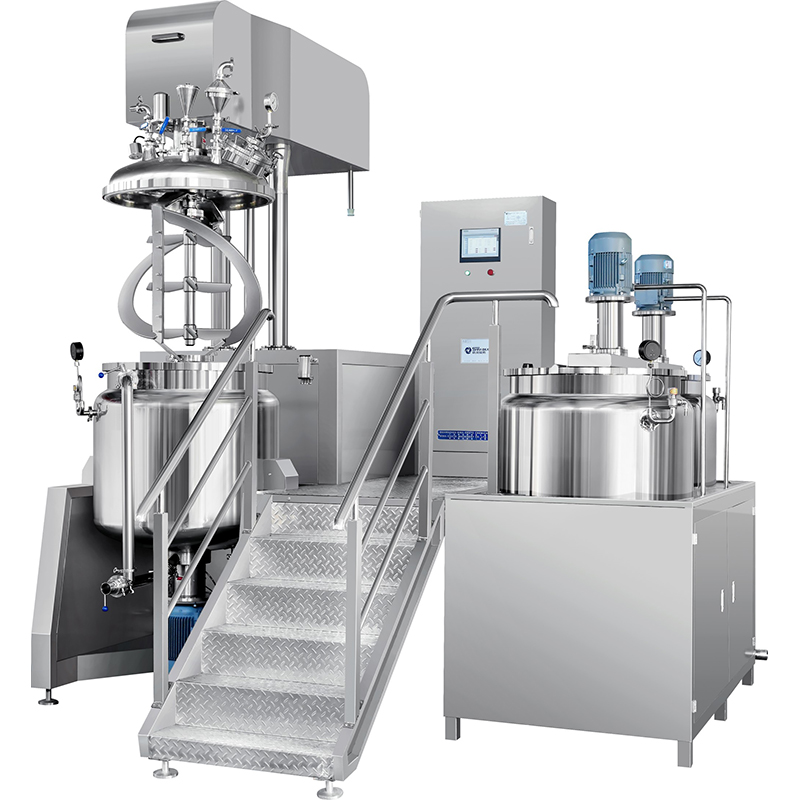

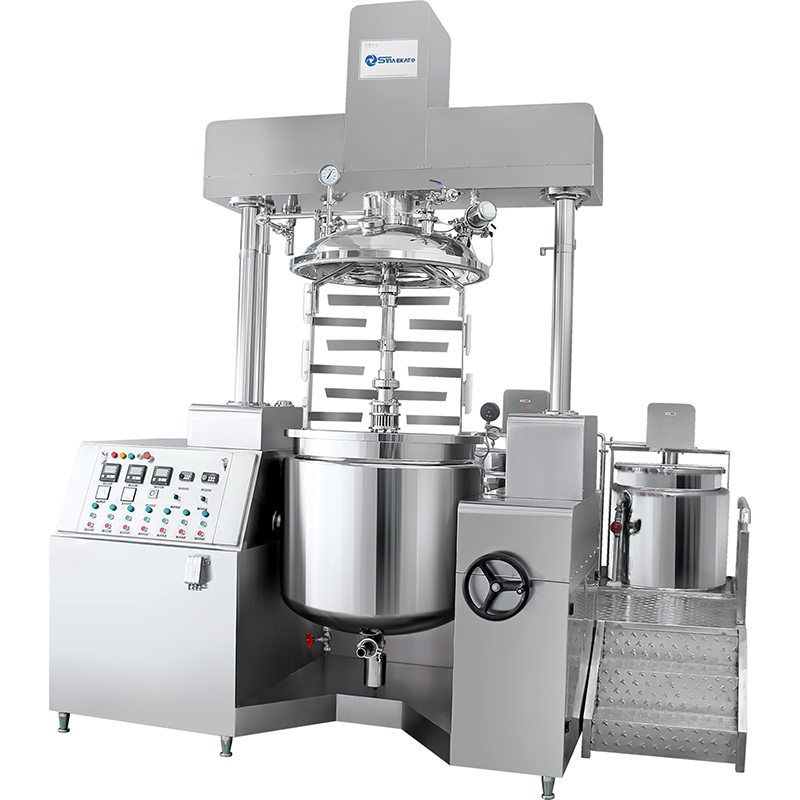

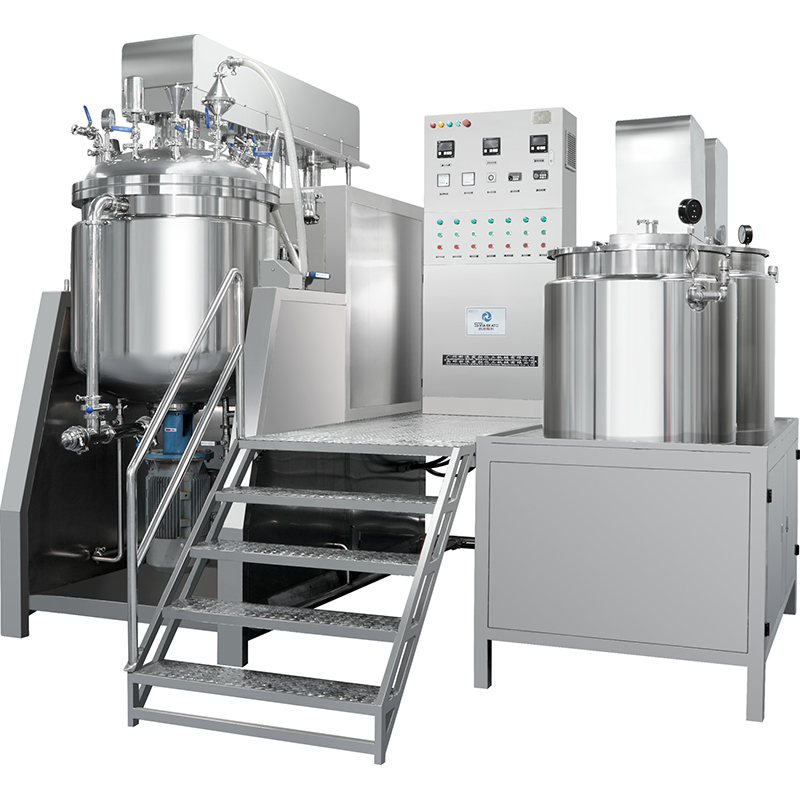

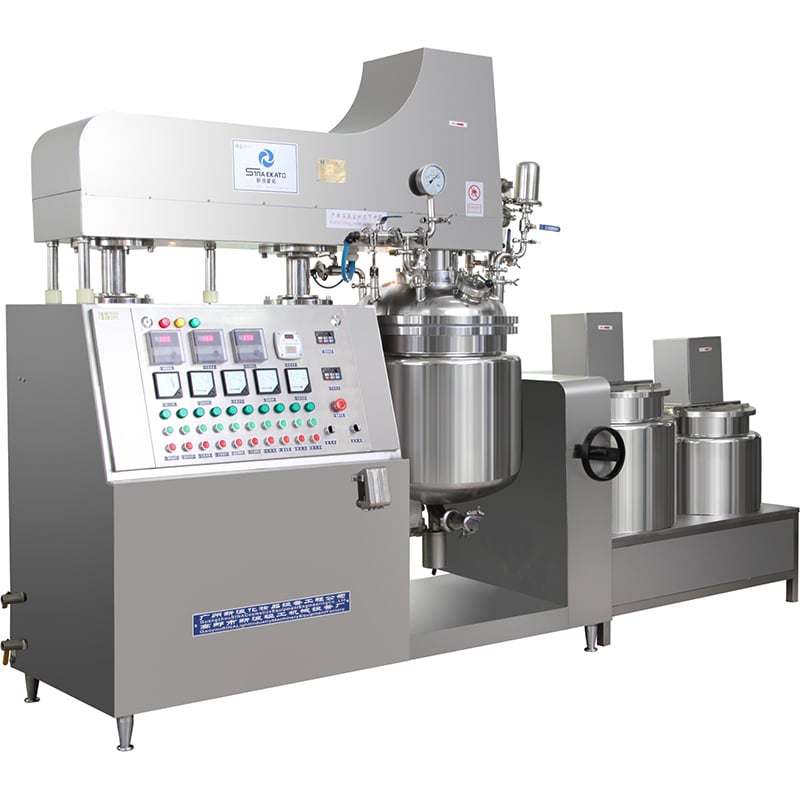

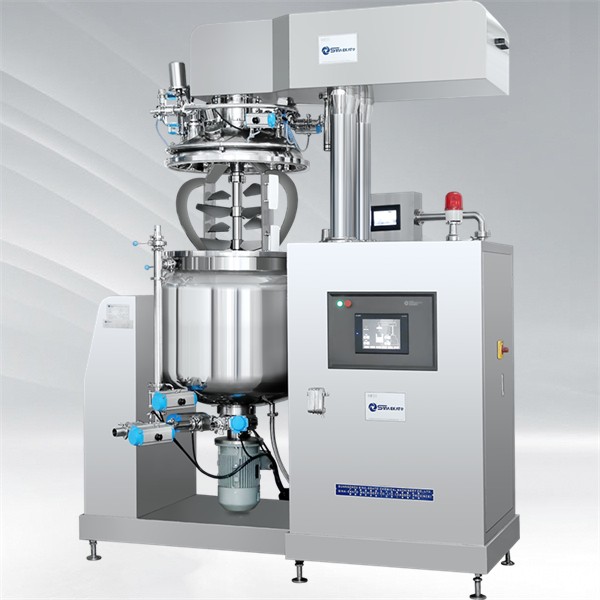

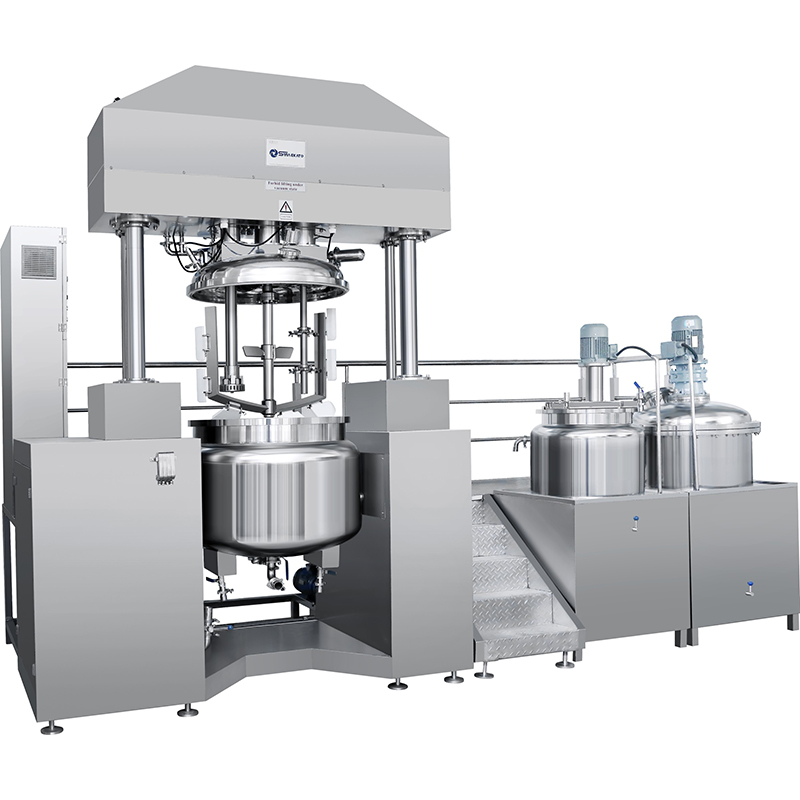

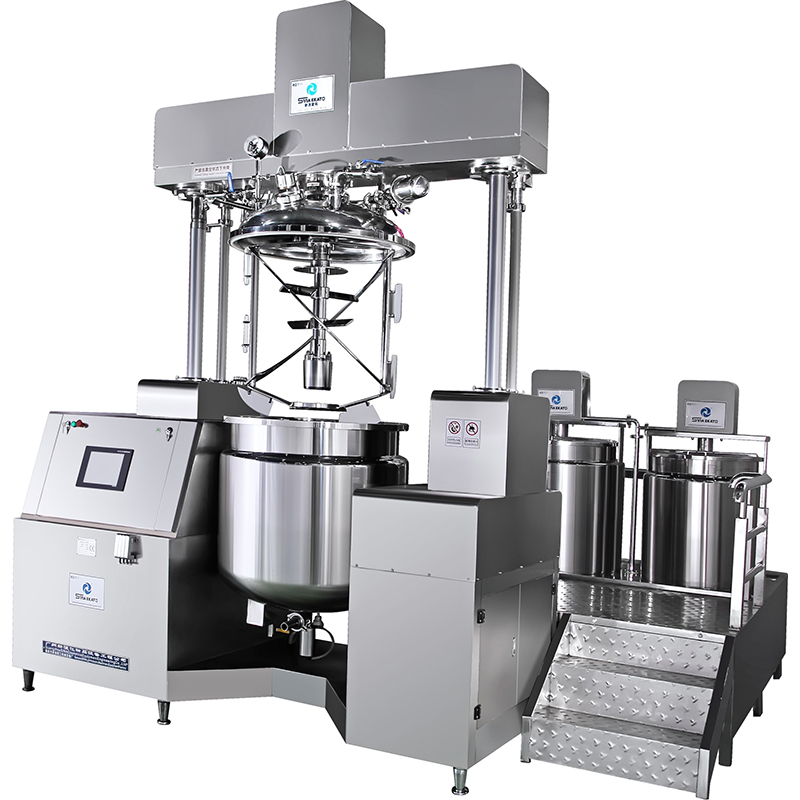

Customized Mobile Homogenizing Emulsifier Vacuum Emulsifying Mixer Cosmetic Production Equipment

Overview

Place of Origin:	Jiangsu China
Brand Name:	SINA EKATO
Model Number:	SME
Certification:	ISO9001, CE

•
•
•
•
•
•
•
•
•

Quick Detail

In the industrial sector and across different markets, this piece of equipment is known by a variety of names, depending on its specific functions, application scenarios, and regional industry conventions. Below is a list of its common English and Chinese designations:

• Lifting Type Vacuum Homogenizing Emulsifier (For Body Lotions & Creams)

• Vacuum Emulsifying Mixer with Lifting Function for Cream-type Body Lotions

• Hydraulic Lifting Vacuum Emulsifier for Cosmetic Creams and Lotions

• Lifting Type Vacuum Emulsifier for Personal Care Cream Production

Core Specifications and Parameters:

Specifications

Description

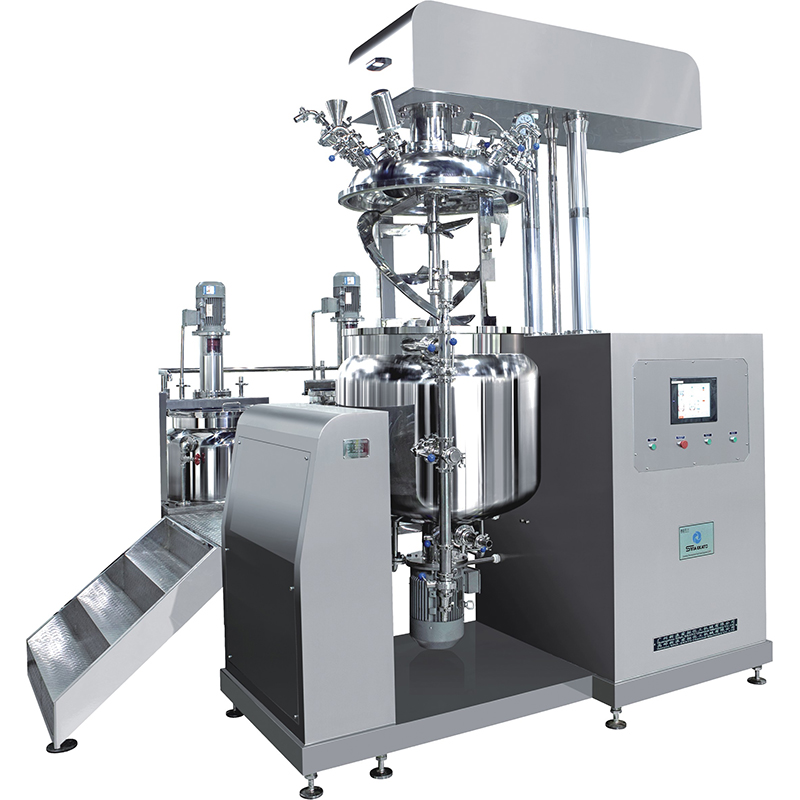

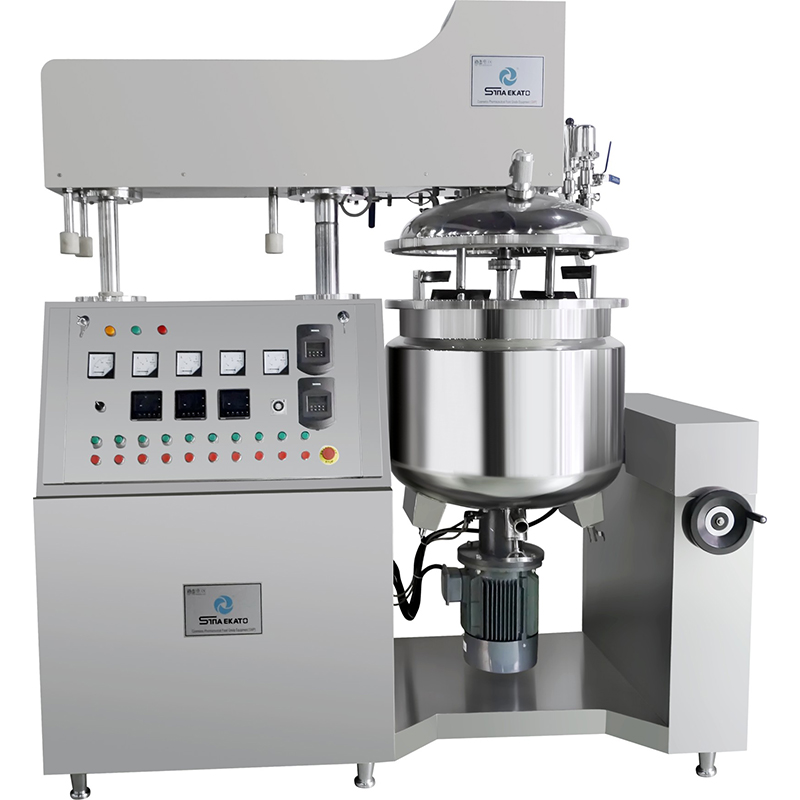

The Lifting Type Vacuum Emulsifying Mixer is a high‑precision, multi‑functional production equipment widely used in cosmetics, personal care, pharmaceuticals, food, and fine chemical industries. It integrates mixing, homogenizing, emulsifying, dispersing, heating, cooling, and vacuum degassing, ideal for producing creams, lotions, ointments, gels, and other viscous products.

1. Structural Design & Lifting System

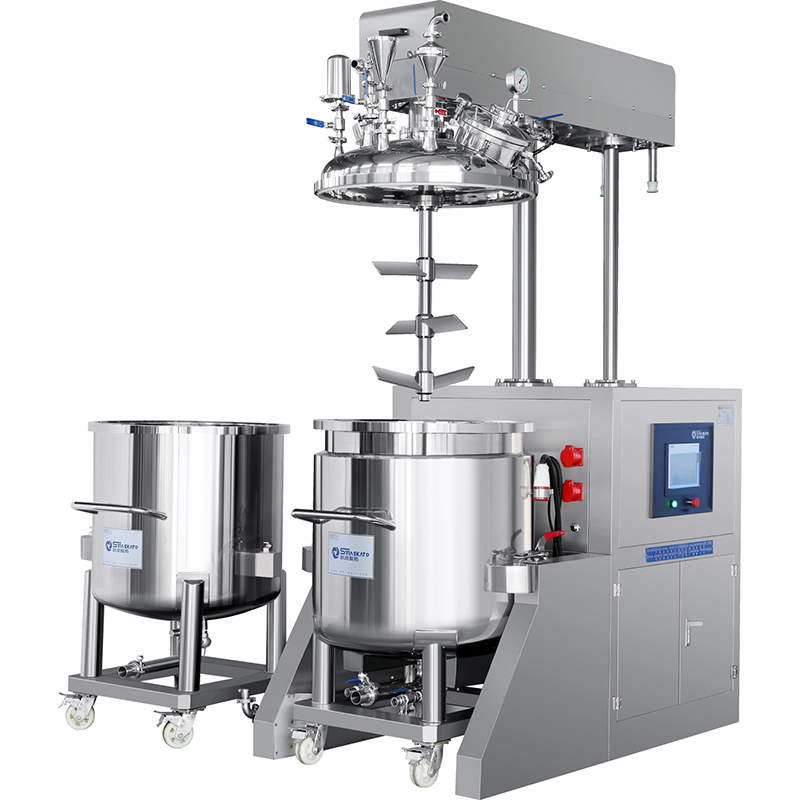

Adopts a hydraulic lifting system to stably lift the upper mixing unit (agitator, scraper, homogenizer), facilitating easy loading, cleaning, and maintenance. The heavy‑duty steel frame ensures rigidity and durability.

2. Mixing & Agitation System

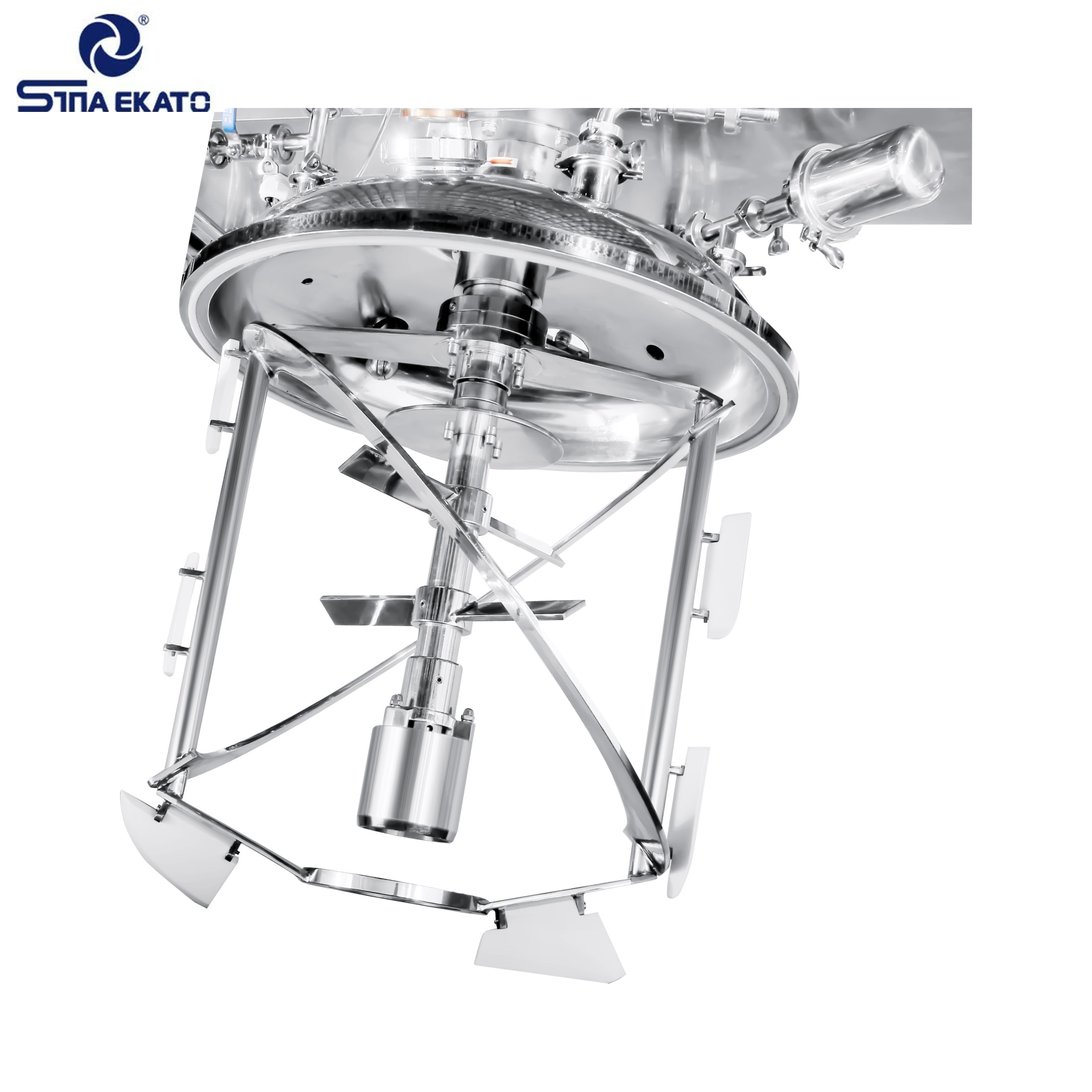

Equipped with a dual mixing system: a SUS316L scraper agitator to eliminate dead corners and prevent adhesion, plus an anchor/ribbon stirrer for uniform blending of high‑viscosity materials.

3. High‑Shear Homogenizer

A top/bottom‑mounted high‑shear homogenizing head delivers strong shear and turbulence, reducing particle size, dispersing insoluble ingredients, and ensuring stable emulsification. Speed is adjustable via a frequency converter.

4. Vacuum System

Operates under vacuum up to -0.09 MPa to remove air bubbles, enhance product smoothness and stability, and prevent oxidation. Includes a vacuum pump and buffer tank for reliable performance.

5. Material & Hygienic Design

All product‑contact parts are SUS316L/SUS304 stainless steel with mirror polishing (Ra ≤ 0.4 μm), meeting GMP standards. A jacketed tank enables heating/cooling, and high‑quality mechanical seals ensure hygienic, leak‑free operation.

6. Control System

Controlled by a PLC touch screen for precise adjustment of speed, temperature, time, and vacuum. Supports automatic/manual modes with timing, temperature control, and fault alarms for intelligent operation.

7. Capacity & Customization

Standard capacities range from 50L to 5000L, with full customization available for materials, pressure, heating methods (electric/steam), and CIP systems.

8. Advantages

• Stable hydraulic lifting for easy operation and cleaning

• High‑efficiency emulsification and homogenization

• Vacuum degassing for high‑quality products

• GMP‑compliant hygienic design

• Intelligent control and high automation

• Durable structure and low maintenance

Applications

Competitive Advantage

· Siemens motor and frequency converter for speed adjustment, which can meet production of different technology requirement.

· The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking adopted can avoid dustespecially for the powder products.

· Mechanical sealing, good sealing effect and long working life.

· The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.

· Material contact parts all use SUS316L stainless steel.

· The heating method mainly include electric or steam heating for customer's choice.

· The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
