Overview
| Place of Origin: | Jiangsu China |
| Brand Name: | SINA EKATO |
| Model Number: | SME-B |
| Certification: | ISO9001, CE |
| Minimum Order Quantity: | 1 SET |
| Delivery Time: | 50days |
| Supply Ability: | 500-5000L |
Quick Detail
1. Alternative Names: Fixed Type Emulsifier, Stationary Homogenizer, Industrial Vacuum Mixer, Bottom-Homogenizing Emulsifying Unit
2. Main Applications
Cosmetics: Foundation, Cold Cream, Sunscreen.
Pharmacy: Ointment, Suppository, Dental Paste.
Food: Mayonnaise, Dressing, Sauce.
Core Specifications and Parameters
| Parameter Category | Core Parameter Items | Common Specification Range |
| Emulsifying Pot Parameters | Effective Volume | 500L - 5000L (mass production models) |
| Material | Inner Pot: 316L Stainless Steel (food/pharmaceutical grade); Outer Pot: 304 Stainless Steel | |
| Jacket Design | Equipped with heating/cooling jacket, compatible with steam or thermal oil heating | |
| Homogenizing & Emulsifying System | Bottom Homogenizer Speed | 0 - 3000r/min (variable frequency speed regulation) |
| Stirring Paddle Configuration | Two different directions mixing with scraper + Helicon mixing (Clockwise and counter-clockwise mixing) rotating speed: 0 - 45r/min | |
| Vacuum System | Vacuum Degree | ≤ -0.095MPa (adjustable to meet defoaming requirements) |
| Heating & Cooling System | Heating Temperature Range | Room Temperature - 120℃ (temperature control accuracy: ±1℃) |
| Cooling Method | Rapid cooling via circulating cooling water in the jacket | |
| Control System | Operation Interface | PLC + touch screen control, with production formula storage function |
| Safety Protection | Vacuum overload protection, over-temperature alarm, motor overload protection |
Description

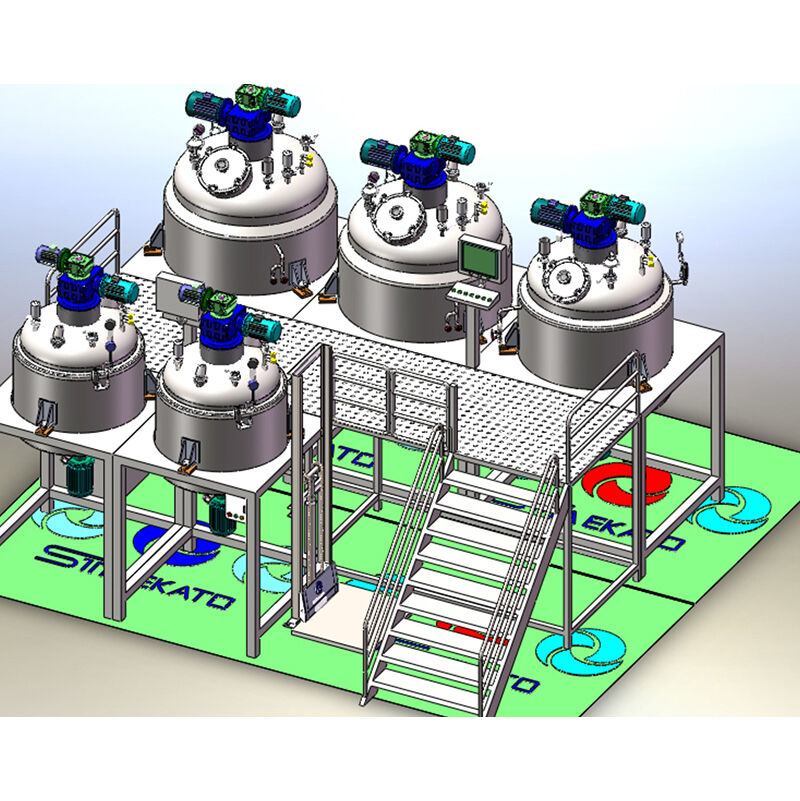

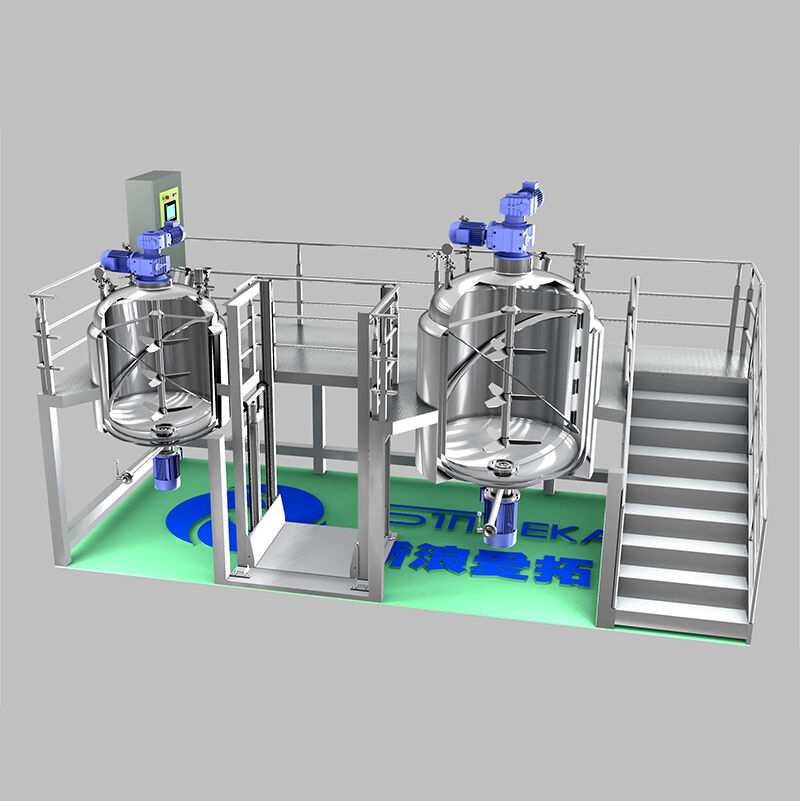

The SinaEkato Stationary Vacuum Emulsifying Mixer is the premier solution for manufacturers prioritizing high-volume output, structural stability, and cost-efficiency. Unlike lifting-type models, the stationary design integrates the mixing vessel into a fixed, heavy-duty work platform. This configuration is engineered for 24/7 industrial operations where reliability and consistent batch quality are paramount, making it an ideal choice for factories with limited ceiling height or those focused on mature, large-batch formulations.
Vacuum System: -0.09Mpa limit vacuum for superior stability and gloss.
High Shear: German-tech homogenizer for silky-smooth textures.
Durable Build: Pharma-grade SUS316L stainless steel construction.
Ease of Use: Electric lifting and intuitive touch-screen control.
Versatile: Ideal for lotions, facial creams, medical ointments, and high-viscosity gels.
Applications
| Daily cosmetic | |||
| hair conditioner | facial mask | moisturizing lotion | suncream |
| skin care | face lotion | body lotion | sunscreen cream |
| cream | hair cream | cosmetic paste | BB Cream |
| lotion | face wash liquid | eye serum | hair gel |
| hair dye | lip balm | serum | lip gloss |
| emulsion | lipstick | Highly viscous product | shampoo |
| cosmetic toner | hand cream | shaving cream | moisturizing cream |
| Pharmaceutical | |||
| Topical Ointment | Topical Cream | Topical Patches | Topical gel |
| Fulibuprofen Gel Patches | Adapalene Gel | Neomycin Ointment | Mupirocin Ointment |
| Food | |||
| cheese | milk butter | wasabi | mayonnaise |
| ketchup | milk butter | margarine | Salad dressing |
| mustard | toothpaste | sauce | chocolate |
Specifications
| Model | Capacity | HomogenizerMotor | Stir Motor | Dimension | Total Power(KW) | Limitvacuum(Mpa) | |||||
| kw | r/min | kw | r/min | Length(mm) | Width(mm) | Height(mm) | Steamheating | Electricheating | |||
| SME-B100 | 100L | 2.8-4 | 1440/2880 | 1.5 | 0-63 | 2750 | 2700 | 2250 | 13 | 32 | -0.09 |
| SME-B200 | 200L | 6.5-8 | 1440/2880 | 2.2 | 0-63 | 3100 | 3000 | 2500 | 15 | 45 | -0.09 |
| SME-B300 | 300L | 6.5-8 | 1440/2880 | 2.2 | 0-63 | 3500 | 3350 | 2650 | 18 | 49 | -0.085 |
| SME-B500 | 500L | 6.5-8 | 1440/2880 | 4 | 0-63 | 3850 | 3600 | 2750 | 22 | 61 | -0.08 |
| SME-B1000 | 1000L | 9-11 | 1440/2880 | 5.5 | 0-63 | 4200 | 3850 | 3300 | 28 | 88 | -0.08 |
| SME-B2000 | 2000L | 11-14 | 1440/2880 | 5.5 | 0-63 | 4500 | 4050 | 3800 | 34 | - | -0.08 |
| SME-B3000 | 3000L | 15-18 | 1440/2880 | 7.5 | 0-63 | 4800 | 4300 | 4100 | 40 | - | -0.08 |
| Note:In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail. | |||||||||||
Competitive Advantage
· Siemens motor and frequency converter for speed adjustment, which can meet production of different technology requirement.
· The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking adopted can avoid dust especially for the powder products.
· Mechanical sealing, good sealing effect and long working life.
· The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
· Material contact parts all use SUS316L stainless steel.
· The heating method mainly include electric or steam heating for customer's choice.
· The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
