Customized Pot Movable Emulsifier Homogenizer Vacuum Emulsifying Mixer Cosmetic Making Machine
- Overview
- Quick Detail
- Specifications
- Description
- Applications
- Competitive Advantage
- Recommended Products
Overview
| Place of Origin: | Jiangsu China |
| Brand Name: | SINA EKATO |
| Model Number: | SME |
| Certification: | ISO9001, CE |
Quick Detail
In the industrial sector and different markets, this equipment has multiple expressions based on functions, application scenarios and regional habits. The common English and Chinese names are as follows:
· Lifting Vacuum Homogenizing Emulsifier (for Body Lotion/Cream)
· Cream-type Body Lotion Vacuum Emulsifying Mixer with Lifting Function
· Hydraulic Lifting Vacuum Emulsifier for Cosmetic Cream & Lotion
· Lifting-type Vacuum Emulsification Machine for Personal Care Cream Production
Core Specifications and Parameters:
| Parameter Category | Core Parameter Items | Common Specification Range |
| Emulsifying Pot Parameters | Effective Volume | 50L - 5000L (lab-scale pilot/testing/mass production models) |
| Material | Inner Pot: 316L Stainless Steel (food/pharmaceutical grade); Outer Pot: 304 Stainless Steel | |
| Jacket Design | Equipped with heating/cooling jacket, compatible with steam or thermal oil heating | |
| Homogenizing & Emulsifying System | Homogenizer Rotating Speed | 0 - 3000r/min (variable frequency speed regulation) |
| Stirring Paddle Configuration | Two different directions mixing with scraper + Helicon mixing (Clockwise and counter-clockwise mixing) rotating speed: 0 - 60r/min | |
| Vacuum System | Vacuum Degree | ≤ -0.095MPa (adjustable to meet defoaming requirements) |
| Lifting System | Lifting Method | Hydraulic lifting |
| Heating & Cooling System | Heating Temperature Range | Room Temperature - 120℃ (temperature control accuracy: ±1℃) |
| Cooling Method | Rapid cooling via circulating cooling water in the jacket | |
| Control System | Operation Interface | PLC + touch screen control, with production formula storage function |
| Safety Protection | Vacuum overload protection, over-temperature alarm, motor overload protection |
Specifications
|
Model |
Capacity |
Homogenizer Motor |
Stir Motor |
Dimension |
Total power（KW） |
Limit vacuum（Mpa） |
|||||
|
KW |
r/min |
KW |
r/min |
Length（mm） |
Width（mm） |
Height（mm） |
Steam heating |
Electric heating |
|||
|
SME-AE-5 |
5L |
0.37 |
0-3000 |
0.18 |
0-72 |
1260 |
540 |
1600/1850 |
2 |
5 |
-0.095 |
|
SME-AE-10 |
10L |
0.75 |
0-3000 |
0.37 |
0-72 |
1300 |
580 |
1600/1950 |
3 |
6 |
-0.095 |
|
SME-AE-50 |
50L |
3-5.5 |
0-3000 |
1.1 |
0-63 |
2600 |
2250 |
1950/2700 |
9 |
18 |
-0.095 |
|
SME-AE-100 |
100L |
4-7.5 |
0-3000 |
1.5 |
0-63 |
2750 |
2700 |
2250/3100 |
13 |
32 |
-0.09 |
|
SME-AE-200 |
200L |
5.5-11 |
0-3000 |
2.2 |
0-63 |
3100 |
3000 |
2500/3450 |
15 |
45 |
-0.09 |
|
SME-AE-300 |
300L |
5.5-11 |
0-3000 |
2.2 |
0-63 |
3500 |
3350 |
2650/3600 |
18 |
49 |
-0.085 |
|
SME-AE-500 |
500L |
7.5-11 |
0-3000 |
4 |
0-63 |
3850 |
3600 |
2750/4000 |
22 |
61 |
-0.08 |
|
SME-AE-1000 |
1000L |
15-18.5 |
0-3000 |
5.5 |
0-53 |
4200 |
3850 |
3300/4800 |
28 |
88 |
-0.08 |
|
SME-AE-2000 |
2000L |
18.5-22.5 |
0-3000 |
7.5 |
0-53 |
4850 |
4300 |
3800/5400 |
40 |
- |
-0.08 |
Description
Vacuum emulsifying machine is an ideal option to produce high-grade skin care products, pharmacy ointment, and many other kinds of creams which need to be very soft and smooth. It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply. It has a very wide application from cosmetics (skin cream, hair gel, lotion etc) and food (jam, chocolate, sauces etc.) to pharmacy (ointment, syrup, paste) and chemicals(painting, adhesives, detergents)

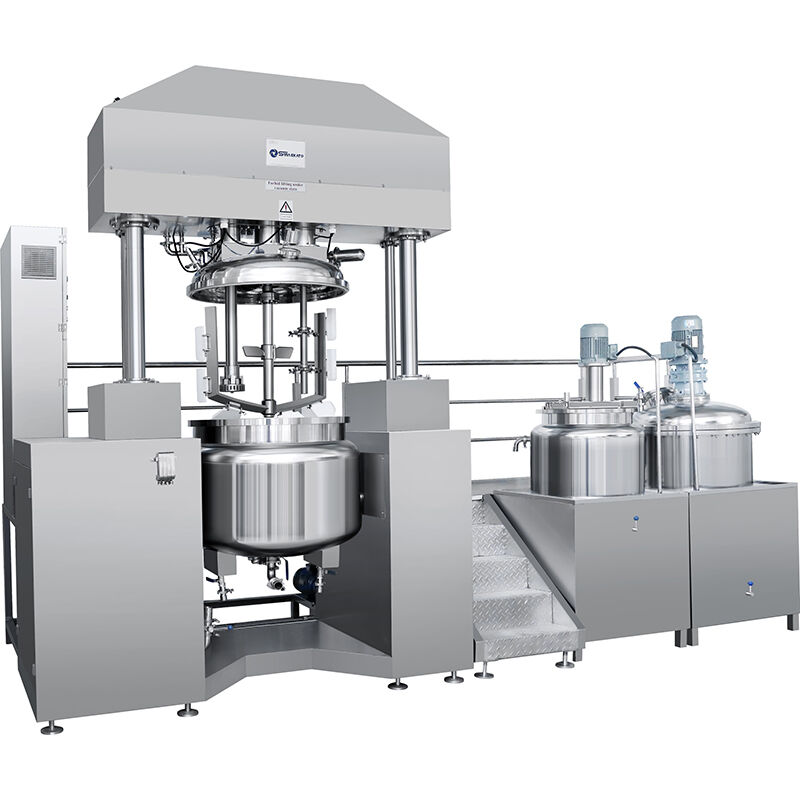

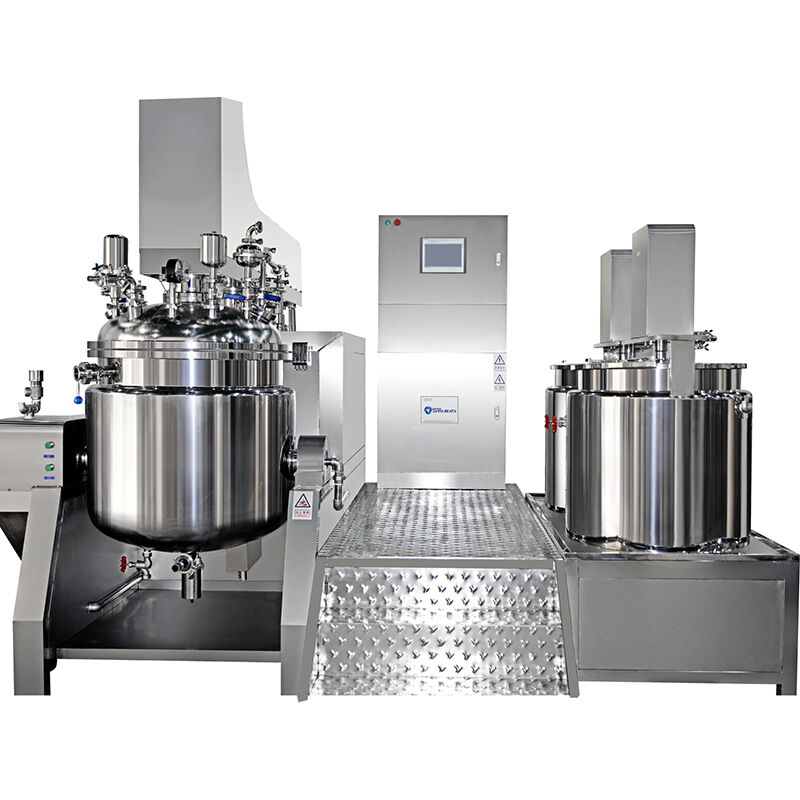

The machine is mainly made up of oil tank, water tank, vacuum homogeneous tank (main tank), heating system, mixing system, vacuum system, electric lifting system, operation control cabinet and piping system.

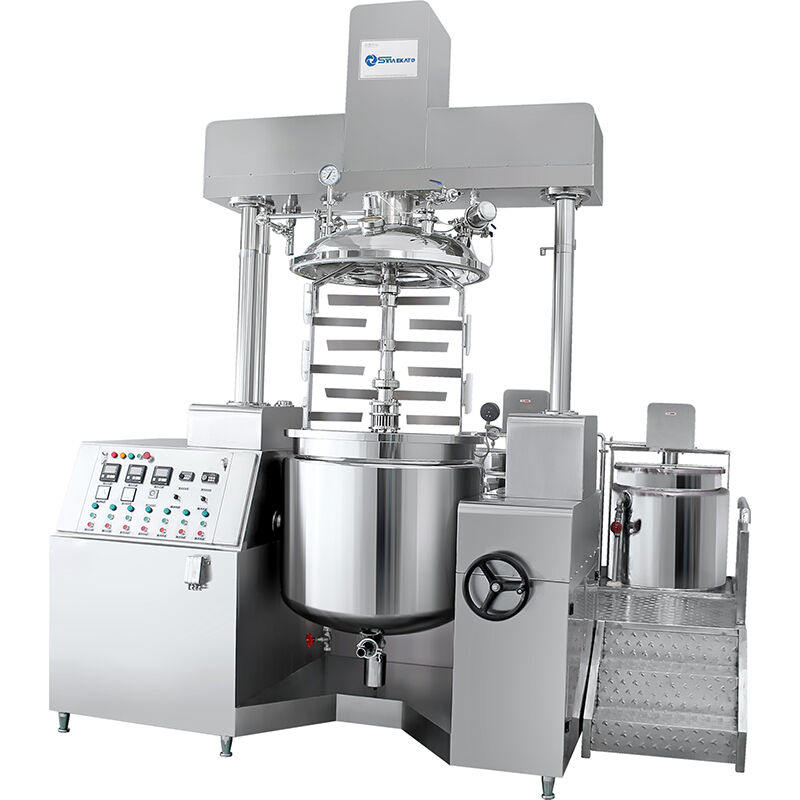

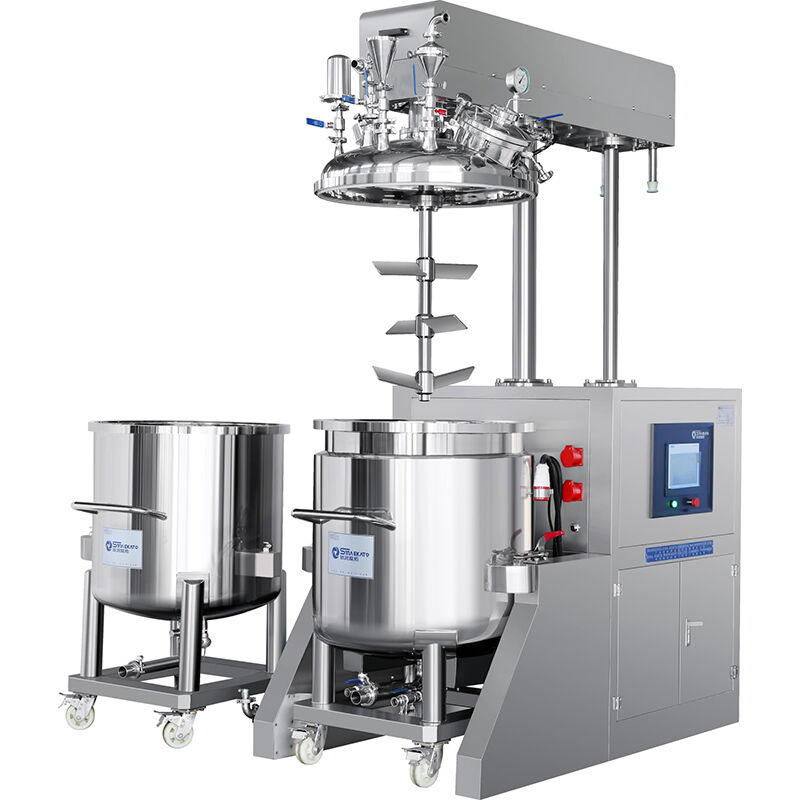

1. Provided with oil pressure lifting system, which can freely lift and lower the boiler cover and has such functions as boiler tilting.

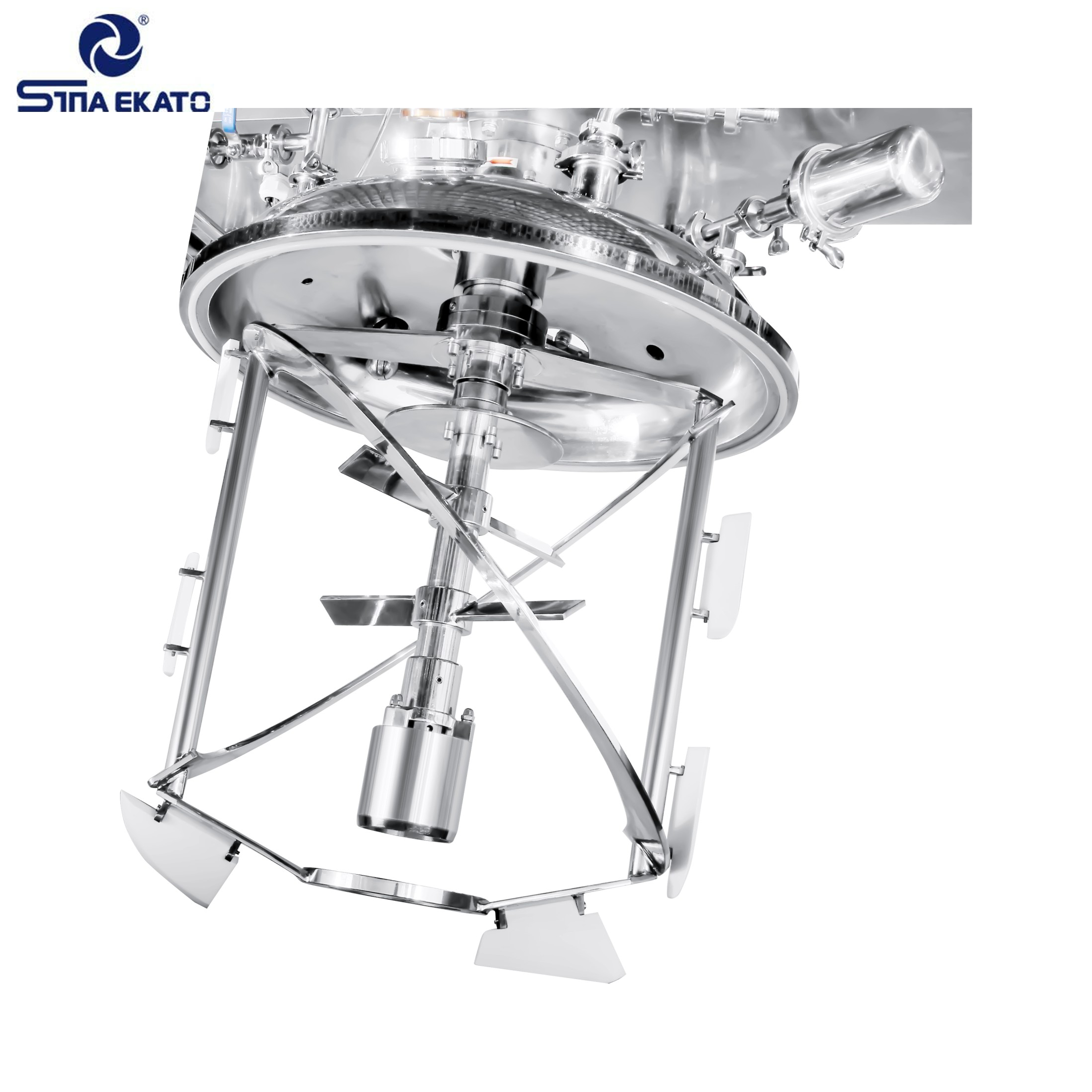

2. The blending system adopts advanced triple blending and frequency conversion speed adjustment, so ads to satisfy production of different technology requirement.
3. Advanced homogenizer with unique structure and reliable sealing (the mechanical seal adopt Germany Bergman product), and the emulsifying rotation speed of 0-3500 rpm (Taiwan’s teco frequency debugger)
4. Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are carried out mirror polishing, which is in complete accordance with GMP standard.
5. The vacuum defoaming can make the materials meet the requirement of being sanitary and aseptic. The vacuum sucking material adopted can avoid dust, especially for the powder products.
Applications
| Daily cosmetic | |||
| hair conditioner | facial mask | moisturizing lotion | suncream |
| skin care | face lotion | body lotion | sunscreen cream |
| cream | hair cream | cosmetic paste | BB Cream |
| lotion | face wash liquid | eye serum | hair gel |
| hair dye | lip balm | serum | lip gloss |
| emulsion | lipstick | Highly viscous product | shampoo |
| cosmetic toner | hand cream | shaving cream | moisturizing cream |
| Pharmaceutical | |||
| Topical Ointment | Topical Cream | Topical Patches | Topical gel |
| Fulibuprofen Gel Patches | Adapalene Gel | Neomycin Ointment | Mupirocin Ointment |
Competitive Advantage
· Siemens motor and frequency converter for speed adjustment, which can meet production of different technology requirement.
· The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking adopted can avoid dustespecially for the powder products.
· Mechanical sealing, good sealing effect and long working life.
· The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
· Material contact parts all use SUS316L stainless steel.
· The heating method mainly include electric or steam heating for customer's choice.
· The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
