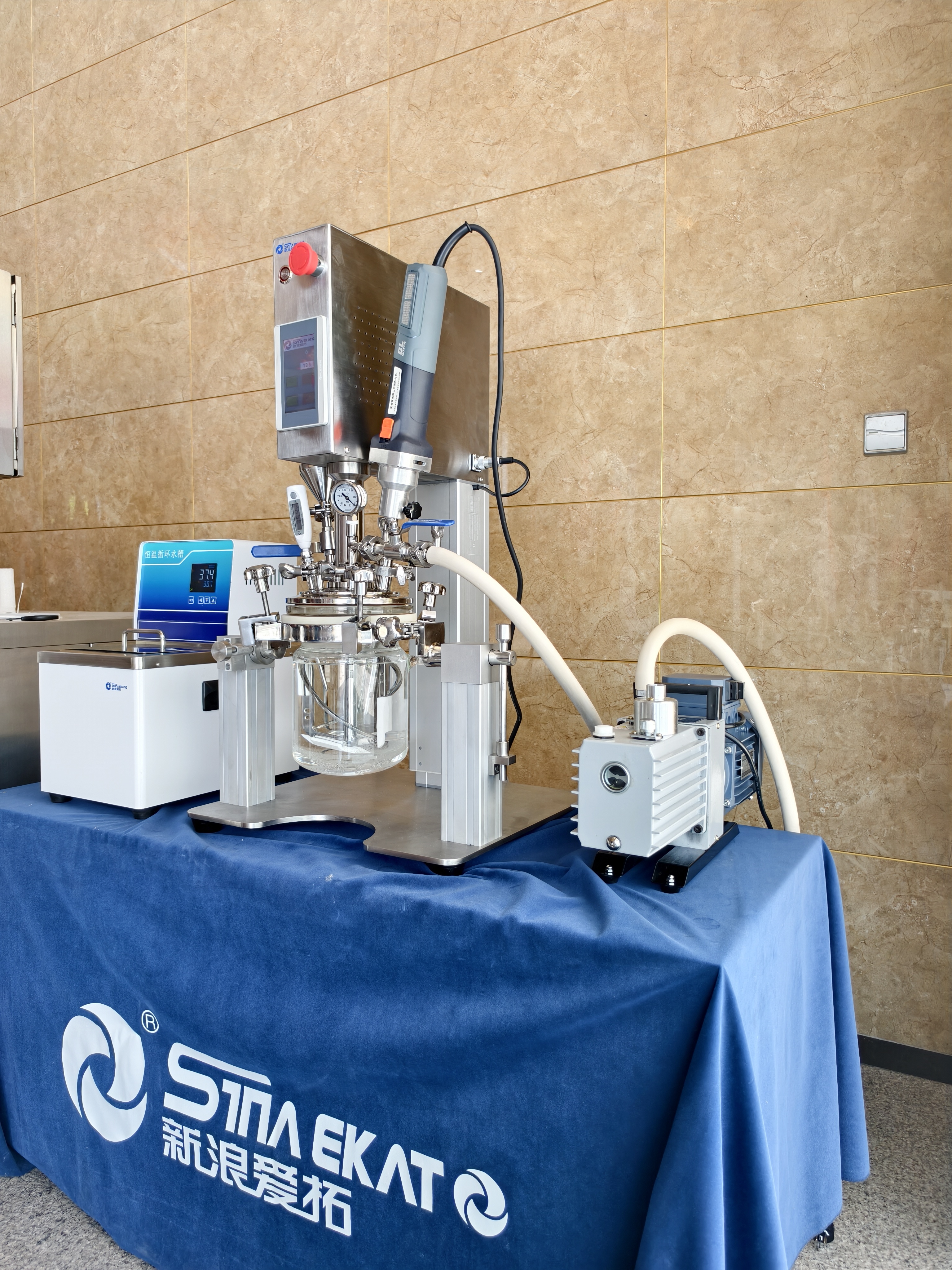

The 2L lifting glass reactor for Lab R&D and small batch
with vacuum pump and thermostatic circulating water bath
- Overview
- Quick Detail
- Description
- Applications
- Competitive Advantage
- Recommended Products
Overview
| Place of Origin: | Jiangsu China |
| Brand Name: | SINA EKATO |
| Model Number: | LGR-2L |
| Certification: | ISO9001, CE |
| Minimum Order Quantity: | 1 SET |
| Delivery Time: | 50 days |
| Supply Ability: | 2L |
Quick Detail
|
Electrical Lifting |
★Lifting stroke:350mm; ★Voltage: 220V(stabilized power supply equipped); ★Lifting Motor Power: 60W; ★Screw type: High-precision trapezoidal screw; ★Lifting motor type: One-key up&down lifting motor; ★Lifting Material: Aluminum alloy; |
|
Agitating System |
★Motor:High-torque reduction motor(digital speed display,panel speed regulation); ★Motor brand: Lijin(Nanjing); ★Motor power: 150W; ★Agitating speed: 0-200rpm; ★Voltage: 220V/50Hz; ★Minimum agitating volume:300mL; ★Maximum agitating volume:2,000mL; ★Agitator blade type: Anchor ribbon agitator with wall scraping; ★Agitator blade material: 316L stainless steel; ★Scraper material: PTFE; ★Agitator integrated bearing brand: SKF(Imported); ★Agitator drive mode: Timing pulley transmission; ★Agitator mounting method: Threaded connection; ★Agitating motor equipped with SS304 protective cover; |
|
High-speed Homogenizing and Shearing System |
★Motor: WECKIA brushless motor; ★Motor power: 1,300W; ★Motor voltage: 220V/50Hz; ★Motor speed range: 8,000-30,000 rpm(No-load); ★Speed display: Scale display; ★Speed regulation: Stepless speed control; ★Minimum homogenizing&shearing volume: 1,000mL; ★Maximum homogenizing&shearing volume: 2,000mL; ★Standard homogenizing working head: 20DG; ★Rotor type of working head: G-type two-blade shearing head; ★Bearing brand: SKF(Imported); ★Working head material: SS316L stainless steel; ★Mechanical seal: 6mm shaft mechanical seal; ★Seal ring material: FKM; |
|

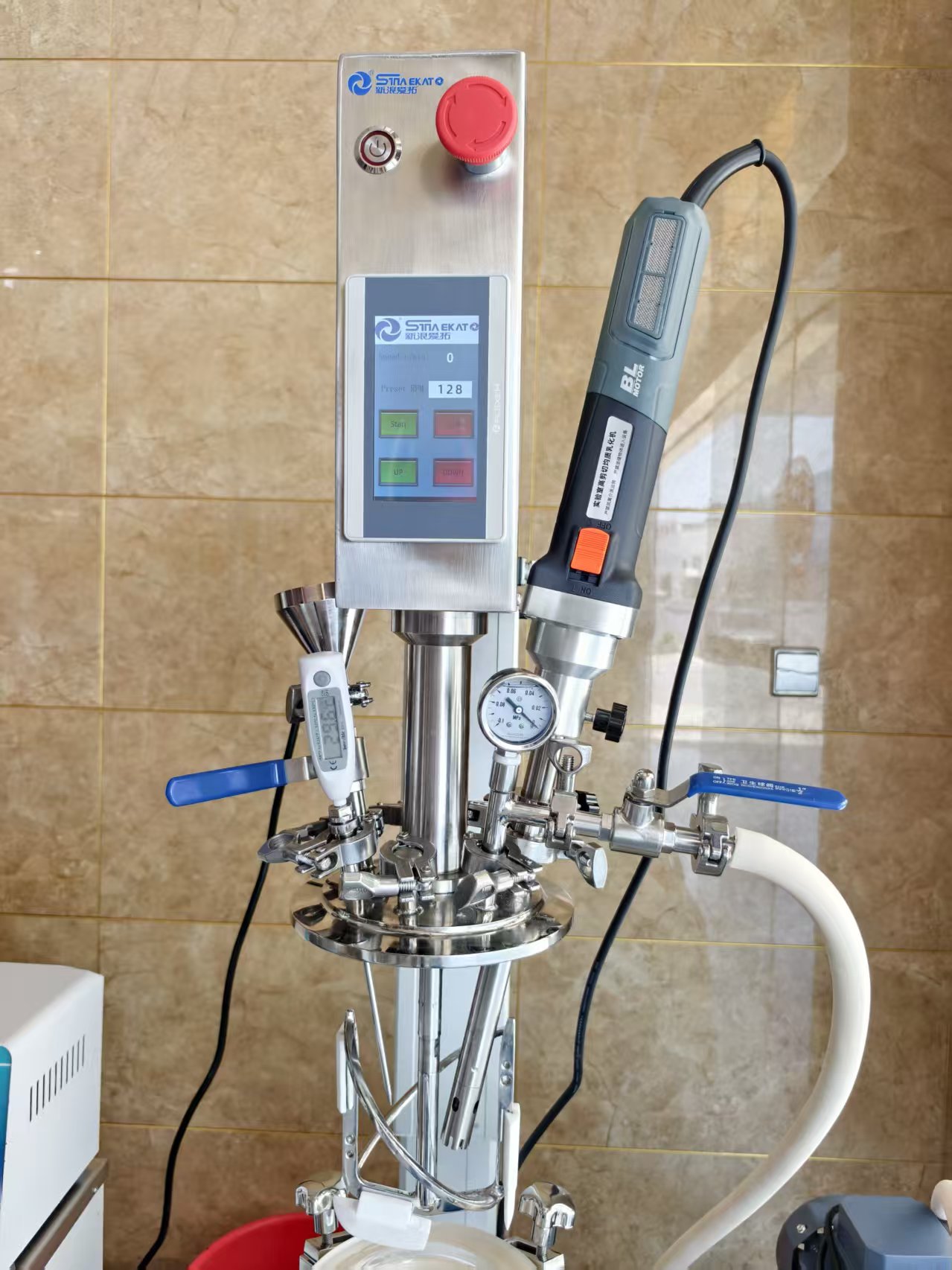

Reactor Module System |
★Lid material: SS316L(Including lid nozzles and fitting assemblies); ★Lid seals: o-rings&lip seals; ★Seal ring material: FKM; ★Lid port modules: 1*agitating port, 1*homogenizing port, 1*temperature measuring port, 1*feeding port, 1*vacuum port, 3*spare ports; ★Lid fitting type: sanitary tri-clamp quick connectors; ★Temperature measurement: digital display thermometer(probe type); ★Vacuum assembly: vacuum gauge, hose quick connectors, stainless steel ball valves; ★Feeding assembly: feed hopper, stainless steel ball valve; ★Vacuum requirement:-0.09 MPa; ★All spare ports fitted with tri-clamp blank caps; ★Lid &Vessel fastening: Hand-wheel clamping latches(4 sets); ★Vessel structure: 2L jacketed glass reactor(without bottom discharge); ★Total volume: 2,400 mL; ★Working volume: 2,000 mL; ★Glass vessel material:High borosilicate glass; ★Jacket inlet&outlet of glass reactor: Quick connectors with 6mm inner diameter; ★Discharging method: manual tilting pouring; ★Discharging mechanism: pouring handle+tilting vessel clamping ring; |
|
Base&Electrical Control System |
★Base Material: Aluminum alloy; ★Base surface treatment: Blue plastic-sprayed aluminum alloy; ★Convenient power socket equipped at the rear of the base; ★Four anti-vibration feet installed on the base; ★Wiring circuit: 220V; ★Cable drag chain trough fitted on the unit; ★Operation mode: new integrated control panel; ★Functions: Power on, power off, lift up, lower down, agitating control panel; |
|

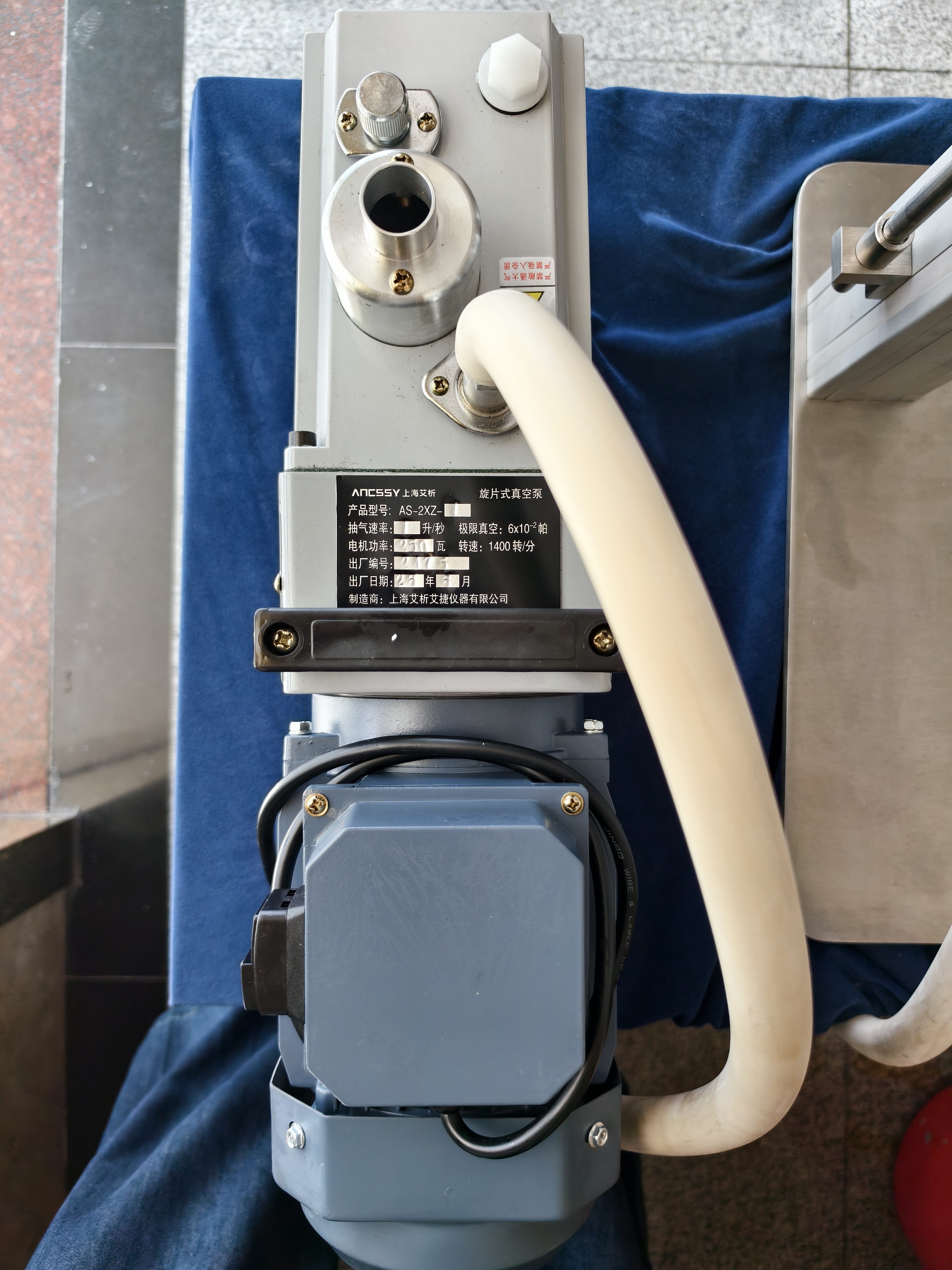

Vacuum Pump |
★Power supply: 220V/50Hz; ★Power: 0.37KW; ★Ultimate vacuum: Gas ballast closed:6.7*10-2 pa, gas ballast open: 1.33 pa; ★Pumping speed(L/S): 2 L/S; ★Rotation speed: 1,400 rpm; ★Inlet diameter: Φ18mm; ★Inlet material: Metal; ★Net weight: 20KG; ★Overall dimension: 478mm*148mm*277mm; |
|

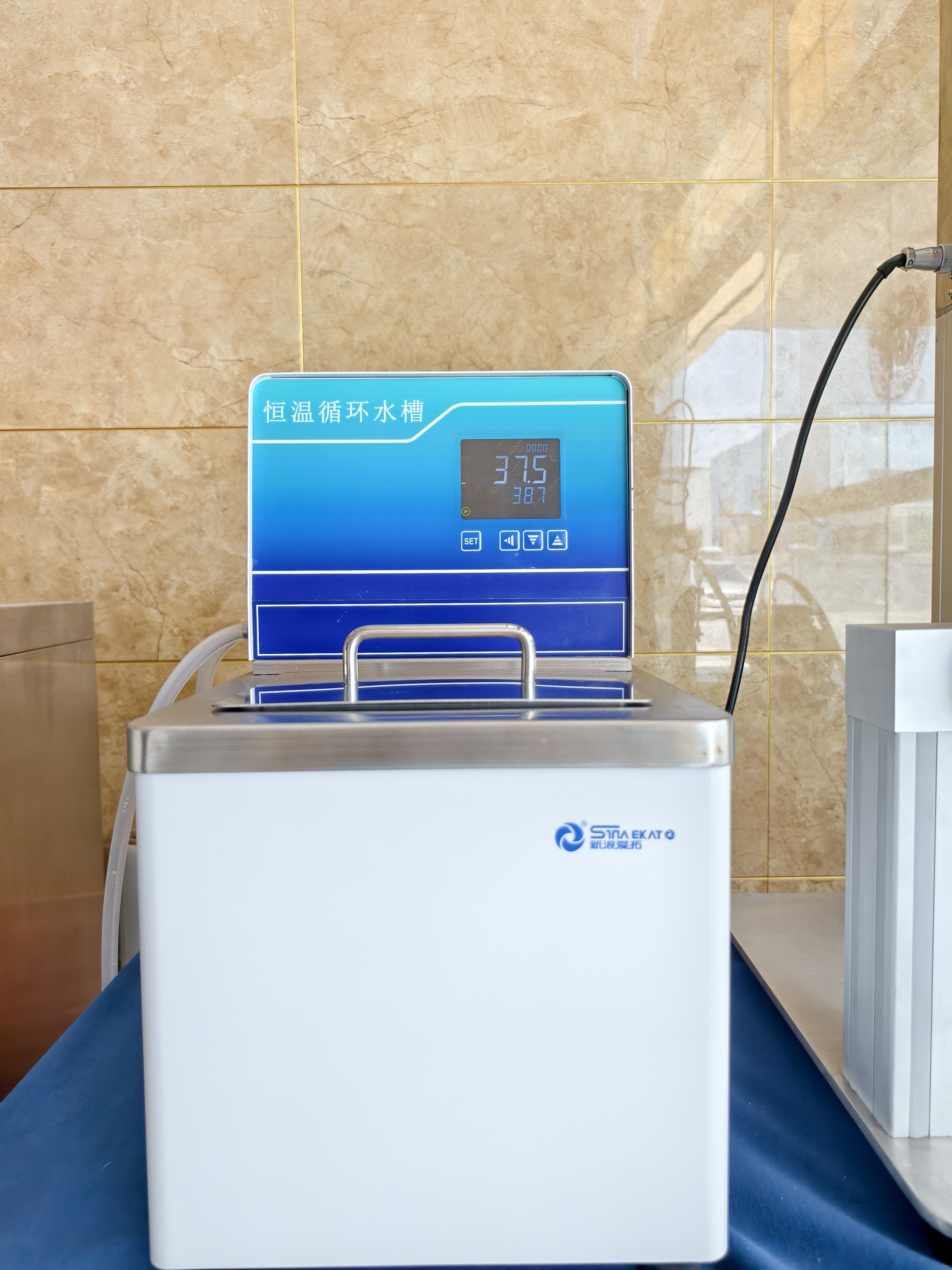

Thermostatic Circulating Water Bath |
★Power supply voltage: AC 220V 50Hz; ★Total machine power: 1,000W; ★Temperature Control Range: RT+5~100℃； ★Temperature fluctuation: ±0.5 ℃； ★Temperature resolution: 0.1℃； ★Tank capacity: 10L； |
Description
Key Features & Technical Specifications
- Working Volume: 2L, ideal for small-batch R&D and pilot-scale trials.
- Reactor Vessel: Double-layer borosilicate glass construction for excellent visibility, chemical resistance, and easy cleaning. The jacketed design supports precise temperature control (heating/cooling) to match diverse formulation requirements.
- Agitation & Homogenization: Equipped with a high-shear homogenizer and multi-functional stirring system, enabling efficient emulsification, dispersion, and mixing under vacuum conditions to prevent oxidation and foaming.
- Control System: Intuitive digital control panel with PID temperature control, pressure monitoring, and adjustable speed settings for both stirring and homogenization.
- Vacuum System: Built-in vacuum capability to support degassing and ensure stable, high-quality emulsions and suspensions.
- Material Handling: Stainless steel (SUS304/316L) wetted parts for compliance with GMP and hygiene standards in pharmaceutical and cosmetic applications.
Applications
- Cosmetics R&D: Formulation development for creams, lotions, serums, emulsions, and other skincare products.
- Pharmaceuticals: Preparation of topical creams, gels, ointments, and other semi-solid pharmaceutical formulations.
- Fine Chemicals: Small-scale synthesis, dispersion, and emulsification of specialty chemicals and personal care ingredients.
Competitive Advantage
·
- Precision & Reproducibility: Delivers consistent, repeatable results for reliable formulation development.
- Flexibility: Supports a wide range of process conditions (temperature, pressure, shear) to accommodate diverse material properties.
- Compliance: Designed to meet international hygiene and safety standards, making it suitable for regulated industries.
- Scalability: Provides a direct pathway for scaling up successful lab formulations to industrial production lines.
